Wholesale Rider Type with Magnetic Valve Control CQDH15A-II/ CQDH20A-II Suppliers, ODM Company

STRUCTURAL:

● Reach stacker with very compact design, have different option with platform or without platform.

● Low gravity, ensure safety operation.

● Water proof and dust proof motor structure, keeps the braking and motor more durable and reliable.

● Multi function display with BDI, hour meter and fault code.

● Vertical driving wheel ensures convenient maintenance and small turning radius.

● The mast and frame are dividable and exchangeable.

SAFETY AND EFFICIENCY

● Advanced AC drive motor eliminates replacement of carbon brush, with good ramp starting performance.

● Use Germany Frei handle to control driving speed, lifting/lowering speed, sideshift, fork reach and tilting.

● Cylinder have safety explosion proof valve,to avoid fork dropping suddenly when oil tube is broken . ensure the safety of operator.

● Automatic speed deceleration when lifting height is up 1.8M.

● Mast with micro switch limit the cylinder lifting height, avoid mast shock problems.

● Low voltage protection setting prolongs the battery life. (while battery less 20% only can drive no lifting)

● Option EPS power steering system, makes steering more light an reliable.

SERVICE ABILITY

● Platform and protection arm are disassembled, easy maintenance.

● The electronic components concentrated simplifies the circuit and makes easily assemble and access.

● Battery equipped with protect device, the trucks will automatic cut off power will when battery is under charging.

Manufacturer's type designition		CQDH15A-II (single scissor)
Drive: electric (battery type, mains, ...). diesel, petrol, fuel gas		Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Pedestrian
Rated capacity/rated load	Q (kg)	1500
Load centre distance	c(mm)	500
Load distance, centre of drive axle to fork	x(mm)	269	248
Wheelbase	y(mm)	1373	1393
Service weight	kg	2250/2300/2350/2400/2500/2550/2600
Axle loading, unladen front/rear	kg	901/1699
Axle loading, fork advanced, laden front/rear	kg	2705/1395
Axle loading, fork retracted, laden front/rear	kg	2505/1595
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane
Tyre size, front		Φ250 x 80
Tyre size, rear		Φ125x82
Additional wheels (dimensions)		Φ150x62
Wheels, number front/rear (x = driven wheels)		1x+2/4
Tread, front	b10(mm)	710	710
Tread, rear	b11(mm)	1074	1074/1154
Tilt of mast/fork carriage forward/backward		2/5
Height mast lowered	h1(mm)	1869/2119/2369/2619	2179/2341/2499
Free lift	h2(mm)	N/A	1575/1700/1825
Lift	h3(mm)	2500/3000/3500/4000	4500/5000/5500
Height mast extended	h4(mm)	3381/3881/4381/4881	5381/5881/6381
Height drawbar in driving position min./max	h14(mm)	1100/1600
Overall length	l1(mm)	2389	2430
Length to face of forks	l2(mm)	1319	1360
Overall width	b1/b2(mm)	1232/950	(1232/1292)/950
Fork dimensions DIN ISO 2331	s/e/l(mm)	35/100/1070
Fork carriage ISO 2328, class/type A, B		2A
Fork-carriage width	b3(mm)	940/990	940/990
Fork spread	b5(mm)	200-760/200-680	200-760/200-680
Distance between wheel arms/loading surfaces	b4(mm)	916	916/976
Reach distance	l4(mm)	500
Ground clearance, laden, below mast	m1(mm)	50	50
Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	2733	2770
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	2800	2840
Turning radius	Wa(mm)	1588	1608
Length across wheel arms	l7 (mm)	1760	1780
Travel speed, laden/unladen	km/h	4.8/5.0
Lift speed, laden/unladen	m/s	0.095/0.12
Lowering speed, laden/unladen	m/s	0.20/0.15
Reaching speed, laden/unladen	m/s	0.1	0.1
Max gradeability, laden/unladen	%	5/12	5/12
Service brake		Electromagnetic
Drive motor rating S2 60 min	kW	2.2 AC
Lift motor rating at S3 15%	kW	3.3/4.5	3.3/4.5
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	24/320(460)
Battery weight	kg	285(360)
Sound pressure level at the driver's seat	dB (A)	75

Manufacturer's type designition		CQDH20A-II (single scissor)
Drive: electric (battery type, mains, ...). diesel, petrol, fuel gas		Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Pedestrian
Rated capacity/rated load	Q (kg)	2000
Load centre distance	c(mm)	500
Load distance, centre of drive axle to fork	x(mm)	265	262
Wheelbase	y(mm)	1462	1481
Service weight	kg	2450/2500/2550/2600/2700/2750/2800
Axle loading, unladen front/rear	kg	970/1830
Axle loading, fork advanced, laden front/rear	kg	3133/1667
Axle loading, fork retracted, laden front/rear	kg	2933/1867
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane
Tyre size, front		0250x80
Tyre size, rear		Φ125x82
Additional wheels (dimensions)		Φ150x62
Wheels, number front/rear (x = driven wheels)		1x+2/4
Tread, front	b10(mm)	710	710
Tread, rear	b11(mm)	1120	1120
Tilt of mast/fork carriage forward/backward		2/5
Height mast lowered	h1(mm)	1875/2125/2375/2625	2185/2345/2505
Free lift	h2(mm)	N/A	1575/1700/1825
Lift	h3(mm)	2500/3000/3500/4000	4500/5000/5500
Height mast extended	h4(mm)	3397/3897/4397/4897	5397/5897/6397
Height drawbar in driving position min./max	h14(mm)	1100/1600
Overall length	l1(mm)	2450	2474
Length to face of forks	l2(mm)	1380	1404
Overall width	b1/b2(mm)	1232/950	(1232/1292)/950
Fork dimensions DIN ISO 2331	s/e/l(mm)	40/100/1070
Fork carriage ISO 2328, class/type A, B		2A
Fork-carriage width	b3(mm)	940	940
Fork spread	b5(mm)	200-680	200-680
Distance between wheel arms/loading surfaces	b4(mm)	916	916/976
Reach distance	l4(mm)	500
Ground clearance, laden, below mast	m1(mm)	50	50
Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	2928	2950
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	2996	3019
Turning radius	Wa(mm)	1779	1799
Length across wheel arms	l7 (mm)	1849	1869
Travel speed, laden/unladen	km/h	4.8/5.0
Lift speed, laden/unladen	m/s	0.08/0.12
Lowering speed, laden/unladen	m/s	0.20/0.15
Reaching speed, laden/unladen	m/s	0.1	0.1
Max gradeability, laden/unladen	%	5/12	5/12
Service brake		Electromagnetic
Drive motor rating S2 60 min	kW	2.2 AC
Lift motor rating at S3 15%	kW	4.5	4.5
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	24/490(525)
Battery weight	kg	380(432)
Sound pressure level at the driver's seat	dB (A)	75

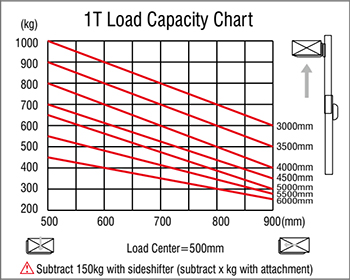

Manufacturer's type designition		CQDH15A-II (double scissor)
Drive: electric (battery type, mains, ...). diesel, petrol, fuel gas		Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Pedestrian
Rated capacity/rated load	Q (kg)	1000
Load centre distance	c(mm)	500
Load distance, centre of drive axle to fork	x(mm)	150	150
Wheelbase	y(mm)	1429	1449
Service weight	kg	2250/2300/2350/2380/2530/2580/2630
Axle loading, unladen front/rear	kg	912/1718
Axle loading, fork advanced, laden front/rear	kg	2415/1212
Axle loading, fork retracted, laden front/rear	kg	2218/1412
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane
Tyre size, front		Φ250x80
Tyre size, rear		Φ125x82
Additional wheels (dimensions)		Φ150x62
Wheels, number front/rear (x = driven wheels)		1x+2/4
Tread, front	b10(mm)	710	710
Tread, rear	b11(mm)	1074	1074
Tilt of mast/fork carriage forward/backward		2/5
Height mast lowered	h1(mm)	1875/2125/2375/2625	2185/2345/2505
Free lift	h2(mm)	N/A	1575/1700/1825
Lift	h3(mm)	2500/3000/3500/4000	4500/5000/5500
Height mast extended	h4(mm)	3535/4035/4535/5035	5535/6035/6535
Height drawbar in driving position min./max	h14(mm)	1100/1600
Overall length	l1(mm)	2535	2555
Length to face of forks	l2(mm)	1465	1485
Overall width	b1/b2(mm)	1232/950	1232/950
Fork dimensions DIN ISO 2331	s/e/l(mm)	35/100/1070
Fork carriage ISO 2328, class/type A, B		2A
Fork-carriage width	b3(mm)	940	940
Fork spread	b5(mm)	200-680	200-680
Distance between wheel arms/loading surfaces	b4(mm)	916	916
Reach distance	l4(mm)	1200
Ground clearance, laden, below mast	m1(mm)
Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	2860	2883
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	3040	3063
Turning radius	Wa(mm)	1643	1663
Length across wheel arms	l7 (mm)	1827	1847
Travel speed, laden/unladen	km/h	4.8/5.0
Lift speed, laden/unladen	m/s	0.095/0.12
Lowering speed, laden/unladen	m/s	0.20/0.15
Reaching speed, laden/unladen	m/s	0.1	0.1
Max gradeability, laden/unladen	%	5/12	5/12
Service brake		Electromagnetic
Drive motor rating S2 60 min	kW	2.2 AC
Lift motor rating at S3 15%	kW	3.3/4.5	3.3/4.5
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	24/320
Battery weight	kg	285
Sound pressure level at the driver's seat	dB (A)	75

Manufacturer's type designition		CQDH20A-II (double scissor)
Drive: electric (battery type, mains, ...). diesel, petrol, fuel gas		Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Pedestrian
Rated capacity/rated load	Q (kg)	1000
Load centre distance	c(mm)	500
Load distance, centre of drive axle to fork	x(mm)	182	178
Wheelbase	y(mm)	1462	1482
Service weight	kg	2480/2530/2580/2630/2730/2780/2830
Axle loading, unladen front/rear	kg	981/1849
Axle loading, fork advanced, laden front/rear	kg	2140/1290
Axle loading, fork retracted, laden front/rear	kg	2340/1490
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane
Tyre size, front		Φ250x80
Tyre size, rear		Φ125x82
Additional wheels (dimensions)		Φ150x62
Wheels, number front/rear (x = driven wheels)		1x+2/4
Tread, front	b10(mm)	710	710
Tread, rear	b11(mm)	1120	1120
Tilt of mast/fork carriage forward/backward		2/5
Height mast lowered	h1(mm)	1875/2125/2375/2625	2185/2345/2505
Free lift	h2(mm)	N/A	1575/1700/1825
Lift	h3(mm)	2500/3000/3500/4000	4500/5000/5500
Height mast extended	h4(mm)	3535/4035/4535/5035	5535/6035/6535
Height drawbar in driving position min./max	h14(mm)	1100/1600
Overall length	l1(mm)	2535	2557
Length to face of forks	l2(mm)	1393	1417
Overall width	b1/b2(mm)	1232/950	(1232/1292)/950
Fork dimensions DIN ISO 2331	s/e/l(mm)	40/100/1070
Fork carriage ISO 2328, class/type A, B		2A
Fork-carriage width	b3(mm)	940	940
Fork spread	b5(mm)	200-680	200-680
Distance between wheel arms/loading surfaces	b4(mm)	916	916/976
Reach distance	l4(mm)	1200
Ground clearance, laden, below mast	m1(mm)
Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	2890	2916
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	2972	2996
Turning radius	Wa(mm)	1679	1699
Length across wheel arms	l7 (mm)	1849	1869
Travel speed, laden/unladen	km/h	4.8/5.0
Lift speed, laden/unladen	m/s	0.10/0.17
Lowering speed, laden/unladen	m/s	0.20/0.13
Reaching speed, laden/unladen	m/s	0.1	0.1
Max gradeability, laden/unladen	%	5/12	5/12
Service brake		Electromagnetic
Drive motor rating S2 60 min	kW	2.2 AC
Lift motor rating at S3 15%	kW	4.5	4.5
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	24/490(525)
Battery weight	kg	380(432)
Sound pressure level at the driver's seat	dB (A)	75

* Option: Lithium battery 230AH (Charger 24V/100A)

Website menu

fasttips

Language

ESC

Rider Type with Magnetic Valve Control CQDH15A-II/ CQDH20A-II Suppliers

Model

CQDH15A-II/ CQDH20A-II

Rider Type with Magnetic Valve Control

Advantage:

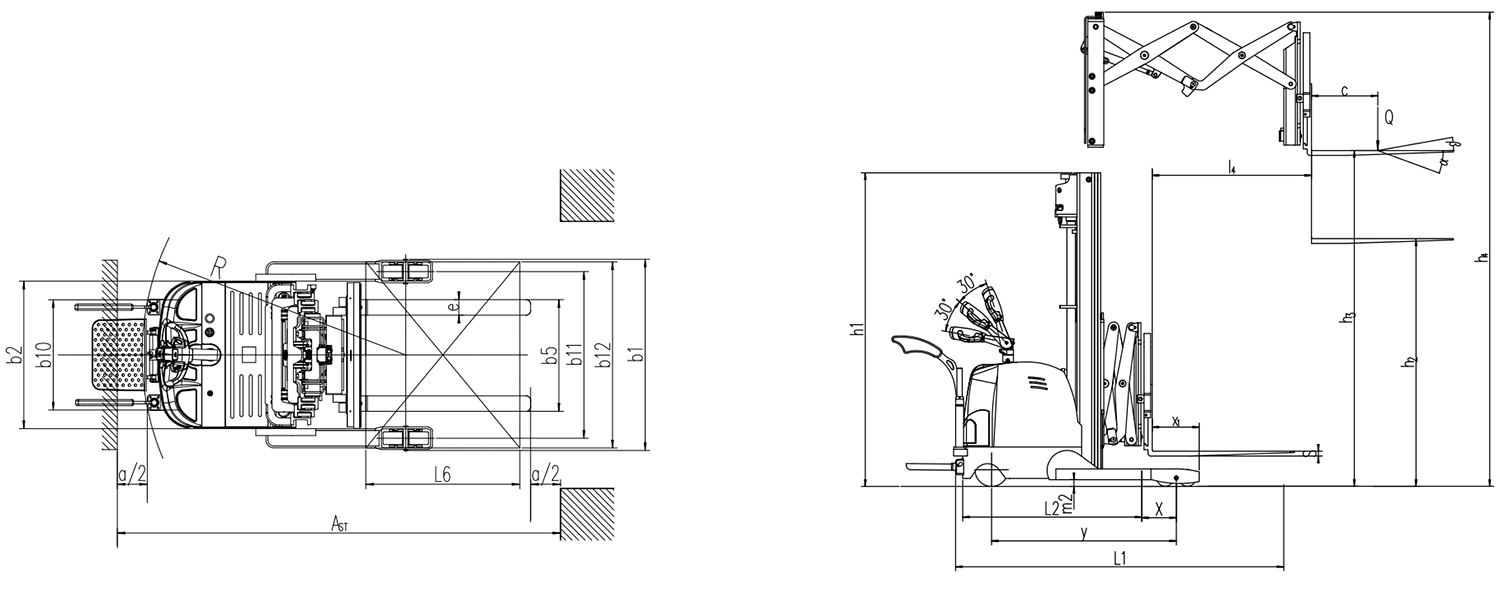

DIMENSION Drawing:

Related Products:

CQDH12A-I/CQDH15A-I

Multi-valve Control Type

CQDH15A-II/ CQDH20A-II

Rider Type with Magnetic Valve Control

CQDH15A-II/ CQDH20A-II

Walkie Type with Magnetic Valve Control

NINGBO RUYI JOINT STOCK CO.,LTD.

High-end Performance and Comprehensive Service

GET STARTED TODAY

We Can Help You With

Inquiry

Website menu

fasttips

Language

Sharing site

ESC

product search

Product Category

Rider Type with Magnetic Valve Control CQDH15A-II/ CQDH20A-II Suppliers

Model

CQDH15A-II/ CQDH20A-II

Rider Type with Magnetic Valve Control

Advantage:

DIMENSION Drawing:

Related Products:

CQDH12A-I/CQDH15A-I

Multi-valve Control Type

CQDH15A-II/ CQDH20A-II

Rider Type with Magnetic Valve Control

CQDH15A-II/ CQDH20A-II

Walkie Type with Magnetic Valve Control

NINGBO RUYI JOINT STOCK CO.,LTD.

High-end Performance and Comprehensive Service

GET STARTED TODAY

We Can Help You With

Inquiry
