Model

CBD20R-II/CBD25R-II

Electric Rider Pallet Truck

CBD20R/25R is the stand-on type platform Pallet Truck, with small turning radius and super light steering system. widely used in large warehouses and big supermarkets for medium-distance transport.

Advantage:

Standard :	Option :
● RUYI handle ● Emergency stop & belly button ● BDI and hour meter ● Casters to balance stability ● Industrial battery ● Brushless AC motor ● Vertical driving motor ● Sideway battery change ● Built-out charger ● Platform with speed sensor	● Fork width and length(size) ● Load backrest ● Built-in Charger ● Cold storage with rubber drive wheel ● Entry & exist roller for empty pallets ● EPS ● Large compartment with battery capacity 280Ah, 400Ah ● Big traction motor 3KW（driving speed 10KM)

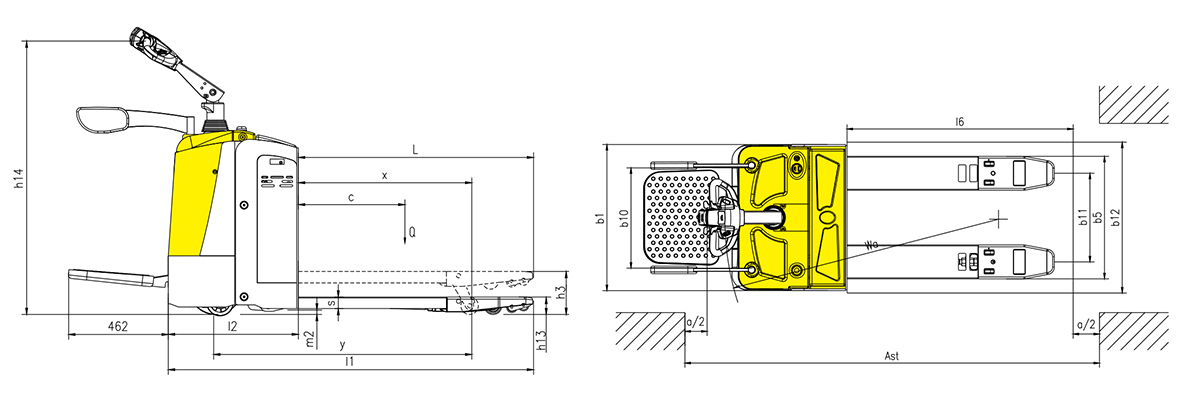

DIMENSION Drawing:

Model		CBD20R-II	CBD25R-II
Drive: electric (battery type, mains,...), diesel, petrol, fuel gas		Electric	Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Standing	Standing
Rated capacity/rated load	Q (kg)	2000	2500
Load centre distance	c(mm)	600	600
Load distance, centre of drive axle to fork	x(mm)	914/964/1034	914/964/1034
Wheelbase	y(mm)	1211/1261/1331	1211/1261/1331
Service weight	kg	710	740
Axle loading, laden front/rear	kg	1300/1410	1470/1770
Axle loading, unladen front/rear	kg	600/110	620/120
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane (PU)	Polyurethane (PU)
Tyre size, front	mm	Φ250x70 / Φ250x80	Φ250x70/Φ250x80
Tyre size, rear	mm	Φ82x126(98)	Φ82x126(98)
Additional wheels (dimensions)	mm	Φ127x57	Φ127x57
Wheels, number front/rear (x = driven wheels)		1X+2/2(4)	1X+2/2(4)
Tread, front	b10(mm)	537	537
Tread, rear	b11 (mm)	340/370/470/505	340/370/470/505
Max. lift height	h3 (mm)	120	120
Height drawbar in driving position min./max.	h14 (mm)	1050/1450	1050/1410
Height lowered	h13 (mm)	82	82
Overall length	l1 (mm)	1710/1760/1830	1710/1760/1830
Length to face of forks	l2 (mm)	610	610
Overall width	b1/b2 (mm)	775	775
Fork dimensions DIN ISO 2331	s/e/l (mm)	54/180/1100(1150/1220)	54/180/1100(1150/1220)
Fork spread	b5(mm)	520/550/650/685	520/550/650/685
Ground clearance, centre of wheelbase	m2 (mm)	28	28
Aisle width for pallets 1000 x 1200 crossways	Ast (mm)	2360/2405/2475	2360/2405/2475
Aisle width for pallets 800 x 1200 lengthways	Ast (mm)	2245/2270/2305	2245/2270/2305
Turning radius	Wa(mm)	1550/1600/1670	1550/1600/1670
Travel speed, laden/unladen	km/h	7.0/7.1	7.0/7.1
Lift speed, laden/unladen	m/s	0.025/0.035(0.035/0.045)	0.035/0.045
Lowering speed, laden/unladen	m/s	0.035/0.030(0.060/0.055)	0.060/0.055
Max. gradeability, laden/unladen	%	8/20	8/20
Service brake		Electromagnetic	Electromagnetic
Drive motor rating S2 60 min	kW	1.2(1.5)	1.5
Lift motor rating at S3 15%	kW	0.8(1.2)	1.2
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	24/210	24/240
Battery weight	kg	195	235
Drive control		AC control	AC control
Sound pressure level at the driver's seat	dB (A)	70	70

*Option：
Battery 240Ah / 400Ah; Drive speed 9.5-10km/h

Option with EPS drive wheel size is 250x80mm

Lithium battery 24V/150AH（Charger 24V/50A)
Lithium battery 24V/230AH（Charger 24V/100A)
