Model

CBD20L

Electric Stand-on Pallet Truck

● CBD20L Electric Pallet Trucks are equipped with fixed platform and closed protection arm, with heavy duty design for the space constraints, with middle or high driving speed for long distance transportation.

Advantage:

● With Ergonomic designed backrest and handrail. The symmetry backrest is suitable for different operator’s habit choice.

● Side stand operation with comfortable backrest, with capacious operation compartment, comfortable and safety for operation.

● The platform is vibration type which is comfortable for the operators.

● Equipped with safety power switch at platform, the truck will be locked when there is no operator. It improves the safety for the truck.

● With strong power system, the max. gradeability can achieve 8% with laden and 17% with unladen.


1. The straight tappet length can be precise adjustment. 2. Fork head fitted with double steel entry rollers, for smoothly enter pallets.	German Frei handle with both side button located in the front of driver for comfortable operation.	Option : keypad access

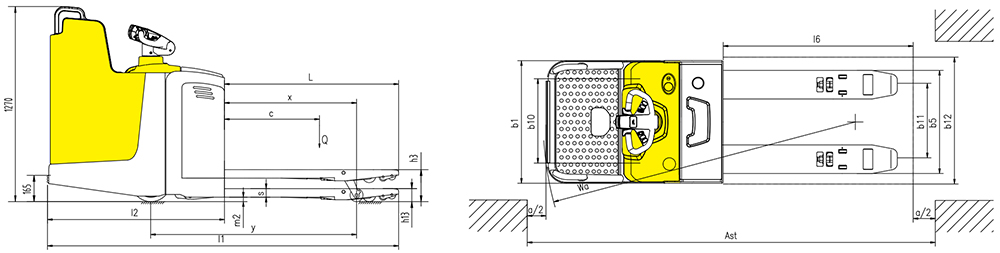

DIMENSION Drawing:

Model		CBD20L
Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas		Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Standing
Rated capacity/rated load	Q(kg)	2000
Load centre distance	c (mm)	600
Load distance, centre of drive axle to fork	x(mm)	914/964/1034
Wheelbase	y (mm)	1300/1350/1420
Service weight	kg	820
Axle loading, laden front/rear	kg	1200/1620
Axle loading, unladen front/rear	kg	700/120
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane (PU)
Tyre size, front	mm	Ф250x80
Tyre size, rear	mm	Ф82x126(98)
Additional wheels (dimensions)	mm	Ф127x57
Wheels, number front/rear (x = driven wheels)		1X+2/2(4)
Tread, front	b10 (mm)	540
Tread, rear	b11 (mm)	340/370/470/505
Max. lift height	h3 (mm)	120
Height drawbar in driving position min./max.	h14 (mm)	1135
Height, lowered	h13 (mm)	82
Overall length	l1 (mm)	2220/2270/2340
Length to face of forks	l2 (mm)	1120
Overall width	b1/b2 (mm)	773
Fork dimensions DIN ISO 2331	s/e/l (mm)	54/180/1100(1150/1220)
Fork spread	b5 (mm)	520/550/650/685
Ground clearance, centre of wheelbase	m2 (mm)	28
Aisle width for pallets 1000 x 1200 crossways	Ast (mm)	2792/2834/2895
Aisle width for pallets 800 x 1200 lengthways	Ast (mm)	2710/2728/2758
Turning radius	Wa (mm)	1970/2020/2090
Travel speed, laden/unladen	km/h	7/7.1
Lift speed, laden/unladen	m/s	0.039/0.056
Lowering speed, laden/unladen	m/s	0.064/0.050
Max. gradeability, laden/unladen	%	8/15
Service brake		Electromagnetic
Drive motor rating S2 60 min	kW	1.5
Lift motor rating at S3 15%	kW	1.2
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	24/240/(280)
Battery weight	kg	235/275
Drive control		AC control
Sound pressure level at the driver's seat	dB(A)	70

*Option:

Battery 320Ah

CBD20L Lithium battery 230AH (Charger 24V/100A)
