Model

BFC25

Hand Pallet Truck

Advantage:

More Easier Operation:

● Equipped with Bluetooth printing function(By scanning the QR code above the instrument (Android smartphone), download and install the app to connect to the instrument via Bluetooth);
● 6-inch LCD screen, which tilts forward as a whole, making it convenient for operators to read numerical values;
● The Type-C charging port can be adapted to mobile phone chargers;
● The instrument operation interface is concise and clear, making it easy to operate;
● Convert weighing units (KG/LB) with just one click, making it convenient for use in different situations;
● The instrument screen is equipped with backlight, which will automatically light up when the weight changes, making it convenient for operators to view; After the weight stabilizes, the backlight will automatically turn off, saving energy and consumption;

More Tough Applications:

● IP protection level: IP54;
● The back of the instrument adopts a fully enclosed design, and the wiring harness is connected with aviation connectors, which overall improves the protective performance of the instrument;
● The entire instrument is covered with iron plates to prevent damage during operation;

Option:

● Optional printer, the printer is a thermal printer, and there is no need to replace the ribbon.

1. Hold
2. Accumulate
3. Print
4. Tare
5. Unit switch

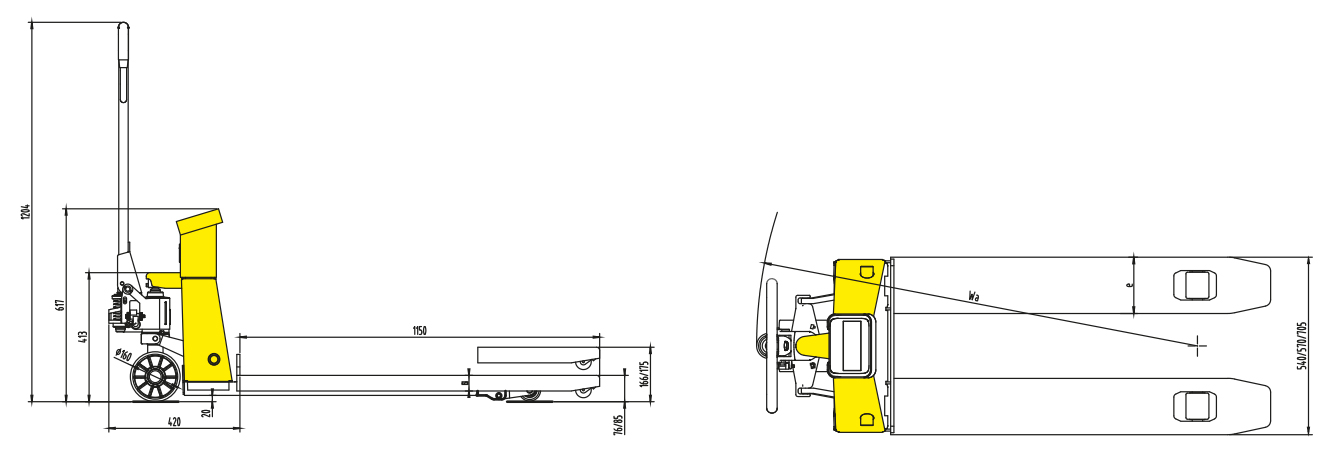

DIMENSION Drawing:

Model		BFC25
Drive: electric(battery type,mains,...), diesel, petrol, fuel gas		Manual
Operator type: hand, pedestrian, standing, seated, order-picker		Walkie
Rated capacity/rated load	Q(kg)	2500
Load centre distance	c(mm)	600
Service weight (battery inclu.)	kg	95-105
Tyres: solid rubber, superelastic, pneumatic, polyurethane		Nylon/PU
Wheel dimension, front		φ160
Wheel dimension, rear		φ70
Lift	h3(mm)	90
Min./max.height of the operating handle in the driving position	h14(mm)	1204
Lowered fork height	h13(mm)	76/85
Overall length	l1(mm)	1570
Overall width across chassis	b1(mm)	520/550/685
Fork dimensions	S/e/l(mm)	55×170×1150
Fork spread	b5(mm)	540/570/705
Ground clearance,centre of wheelbase	m2(mm)	20
Aisle width for pallets 1000×1200 crossways	Ast(mm)	2175
Aisle width for pallets 800×1200 lengthways	Ast(mm)	2035
Turning radius	Wa(mm)	1350
Power supply		3.7V/5Ah Lithium battery
Minimum graduation value	kg	0.2/0.5/1.0
Weighing accuracy		0.1%

Remark: Special size fork width and length can be made according to customer's requirement.
