Model

Multi-function Pallet Truck

More Details

Advantage:

Model: BFQ Quick Lift Pallet Truck

● The quick lift pallet truck is an ideal truck for light load handling.

● Whenever lifting loads under 300kg, it takes just 5 strokes to reach max. height.

● For loads above 300 kg, the quick lift hydraulic system automatically switches to normal operation.

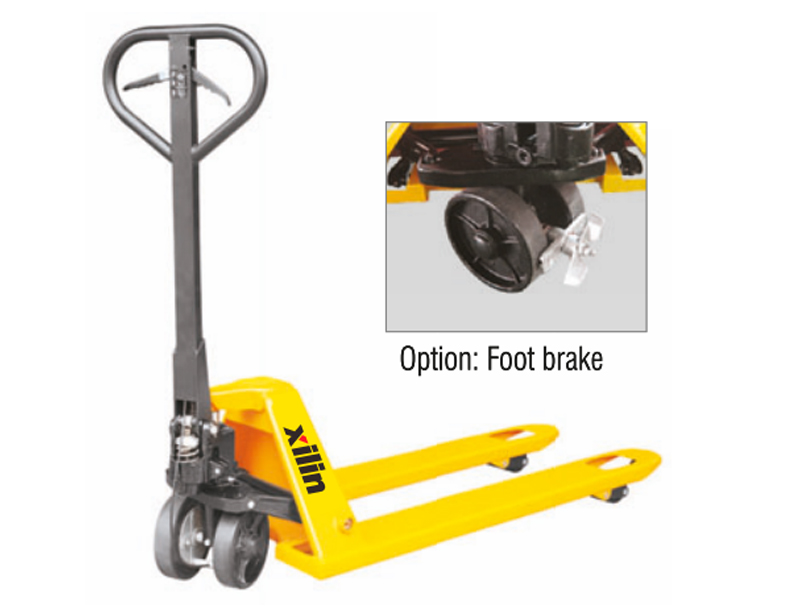

Model: BFB Pallet Truck With Brake System

● Pallet truck with brake system can conveniently cease the truck and navigate ramps

Model: BFT Traverse Pallet Truck

● Designed for moving long loads down narrow aisles.

● Traverse movement effects when the fork height up to 180mm, and turn the handle by an angle of 90 degrees.

● Traverse movement provides more flexibility and convenience of applications as condition changes.

● Load capacity: 2500kg (1500kg traverse traveling).

Model: BFL Low-profile Pallet Truck

● 1.5T Cap. lowered fork height - 52mm.

● 1T Cap. lowered fork height - 35mm.

● Steel fork rollers.

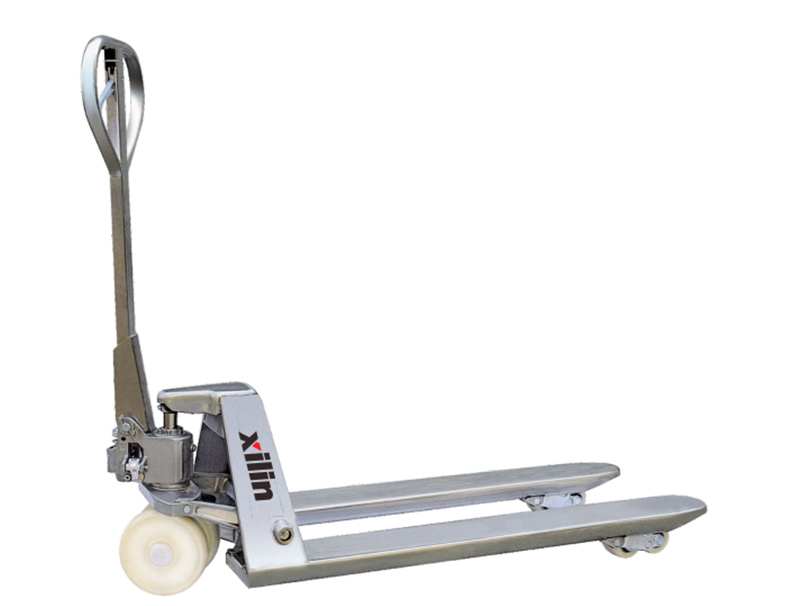

Model: BFS Stainless Steel Pallet Truck

Model: BFG Galvanized Pallet Truck

● Widely used in carrying meat, marine products, wines, beverage, chemicals, etc. and can work in very low temperature conditions,e.g.to deliver goods into and out of freezers/coolers.

Model: BFQ Quick Lift Pallet Truck	Model: BFB Pallet Truck With Brake System
Model: BFT Traverse Pallet Truck (4-way)	Model: BFL Low-profile Pallet Truck
Model: BFS Stainless Steel Pallet Truck	Model: BFG Galvanized Pallet Truck
Model: BF3500 Heavy Duty Pallet Truck	Model: BFR Pallet Truck With Backrest
Model:BFW/BFWL Extra Wide Pallet Truck	Model: BFZ Super Narrow Pallet Truck
Model: WF MINI Pallet Truck	Model:BFJ Reel Carrier Pallet Truck
Model: HW Rough Terrain Truck

DIMENSION Drawing:

Model		BFQ	BFB	BFT
Capacity	Q(kg)	2500	2500	2500 (1500 traverse)
Lowered fork height	(mm)	85/75	85/75	85/75
Steering wheel	mm	φ200/φ180	φ200/φ180	φ200/φ180
Fork wheel single	mm	φ80x93/φ74x93	φ80x93/φ74x93	φ80x70/φ74x70 (fork wheel)
Fork wheel tandem	mm	φ80x70/φ74x70	φ80x70/φ74x70	φ65x60 (traverse wheel)
Max. lift height	h3(mm)	200/190	200/190	200/190
Total height	h14(mm)	1224/1214	1224/1214	1224/1214
Overall length	l1(mm)	1533/1603	1533/1603	1533/1603
Fork length	l(mm)	1150/1220	1150/1220	1150/1220
Width overall forks	b5(mm)	520/550/685	520/550/685	520/550/685
Ground clearance, centre of wheelbase	m2(mm)	40/30	40/30	40/30
Aisle width for pallets 1000x1200 crossways	Ast(mm)	1733/1803	1733/1803	1733/1803
Aisle width for pallets 800x1200 lengthways	Ast(mm)	1783/1803	1783/1803	1783/1803
Turning radius	Wa(mm)	1266/1336	1266/1336	1266/1336
Service weight	kg	65-85	65-85	65-85

Model		BFL10	BFL15	BFS	BFG
Capacity	Q(kg)	1000	1500	2500	2500
Lowered fork height	h13(mm)	35	52	85/75	85/75
Steering wheel	mm	φ150	φ150	φ200/φ180	φ200/φ180
Fork wheel single	mm	~	φ50x93	φ74x93	φ80x93/φ74x93
Fork wheel tandem	mm	φ35x60	φ50x70	φ74x70	φ80x70/φ74x70
Max. lift height	h3(mm)	105	140	200/190	200/190
Total height	h14(mm)	1174	1189	1224/1214	1224/1214
Overall length	l1(mm)	1533/1603	1547/1617	1533/1603	1533/1603
Fork dimensions	s/e/l	28/150/1150(1220)	38/150/1150(1220)	45/160/1150(1220)	45/160/1150(1220)
Width overall forks	b5(mm)	520/550/685	520/550/685	520/550/685	520/550/685
Ground clearance, centre of wheelbase	m2(mm)	7	14	40/30	40/30
Aisle width for pallets 1000x1200 crossways	Ast(mm)	1733/1803	1747/1817	1733/1803	1733/1803
Aisle width for pallets 800x1200 lengthways	Ast(mm)	1783/1803	1797/1817	1783/1803	1783/1803
Turning radius	Wa(mm)	1266/1336	1286/1356	1266/1336	1266/1336
Service weight	kg	65-80	65-80	76-88	65-80

Model		BF3500
Capacity	(kg)	3500
Lowered fork height	(mm)	85/75
Total lift height	(mm)	200/190
H. of handle less	(mm)	443/433
Fork length	(mm)	1150/1220
Width overall forks	(mm)	550/685
Steering wheel	(mm)	φ200/φ180
Fork wheel	(mm)	φ80/φ74
Truck weight	(kg)	100

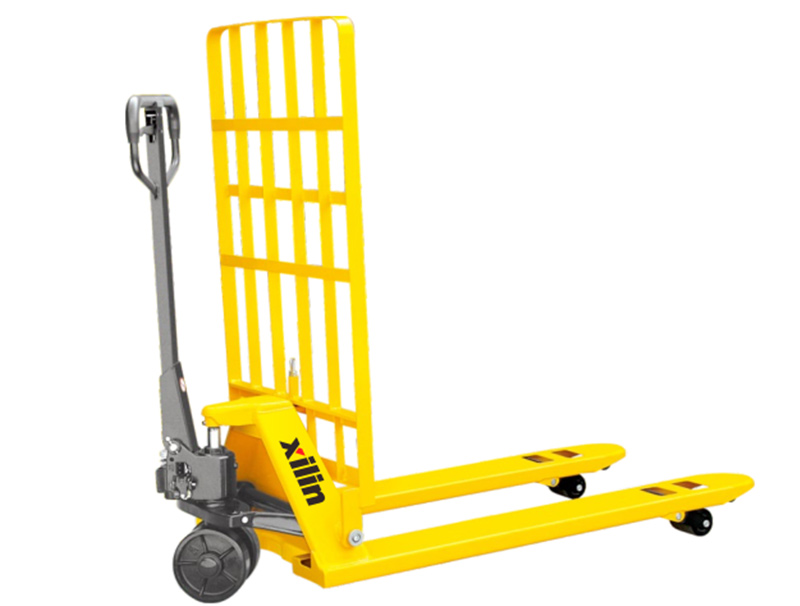

Model		BFR
Capacity	(kg)	2500
Lowered fork height	(mm)	85/75
Total lift height	(mm)	200/190
H. of handle less	(mm)	431.5/421.5
Fork length	(mm)	1150/1220
Width overall forks	(mm)	520/550/685
Steering wheel	(mm)	φ200/φ180
Fork wheel	(mm)	φ80/φ74
Truck weight	(kg)	95/105

Model		BFW	BFWL
Capacity	(kg)	1500	1500
Lowered fork height	(mm)	85/75	52
Total lift height	(mm)	200/190	140
H. of handle less	(mm)	431.5/421.5	396
Fork length	(mm)	1150/1220	1150/1220
Width overall forks	(mm)	830	830
Steering wheel	(mm)	φ200/φ180	φ150
Fork wheel	(mm)	φ80/φ74	φ50
Truck weight	(kg)	100	100

Model		BFZ
Capacity	(kg)	2000
Lowered fork height	(mm)	75
Total lift height	(mm)	190
H. of handle less	(mm)	401.5
Fork length	(mm)	800
Width overall forks	(mm)	406
Steering wheel	(mm)	φ160
Fork wheel	(mm)	φ70
Truck weight	(kg)	65

Model		WF
Capacity	Q(kg)	500
Lowered fork height	h13(mm)	60
Steering wheel	mm	φ127
Fork wheel	mm	φ58
Max. lift height	h3(mm)	150
Total height	h14(mm)	1127
Overall length	l1(mm)	1126
Fork dimensions	s/e/l	40/100/800
Width overall forks	b5(mm)	380
Service weight	kg	35

Model		BFJ
Capacity	(kg)	1000
Diameter of bale	(mm)	φ700~φ1200
Height of handle less	(mm)	431.5
Fork length	(mm)	1150
Max width overall forks	(mm)	965
Steering wheel	(mm)	φ200
Fork wheel	(mm)	φ80
Weight	(kg)	135

Model		HW
Capacity	(kg)	1500
Lowered fork height	(mm)	70
Total lift height	(mm)	240
Height of handle less	(mm)	734
Total height	(mm)	1298
Total width	(mm)	1605
Fork length	(mm)	800
Max width overall forks	(mm)	740
Least width overall forks	(mm)	226
Steering wheel	(mm)	φ250x60
Fork wheel	(mm)	φ380x114
Weight	(kg)	192
