Model

OPL10G/OPL12G

Electric Low Level Order Picker

Advantage:

● Max. lifting height of platform is 1.2M. It is very convenient to pick up goods. The capacity of storage compartment in front of the operator is 60kg.

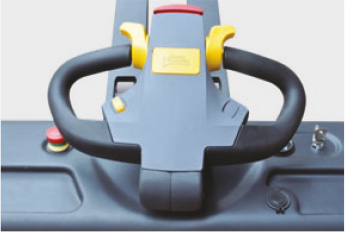

● Advanced power steering system (EPS) handle ensures effortless and highly efficient maneuver ability.

● Ergonomic human engineering design provides the convenience and comfort operation.

● Combining of regenerative brake and electromagnetic brake provide safe and reliable brake.

● Side-way battery designs is very convenient for maintenance and replacement.

● Adding the USB charge device on the control panel which could charge the phone, pad and so on.

● Strong powers which allow the travel speed at 7KM/H when loaded. The max. gradeability could reach 10%. Improve the working efficiency and reliability.

● Advanced AC control with reliable performance is easy to maintain. Speed frequency control makes good control performance.

● With reasonable layout of the key components, it is convenient to manitain.

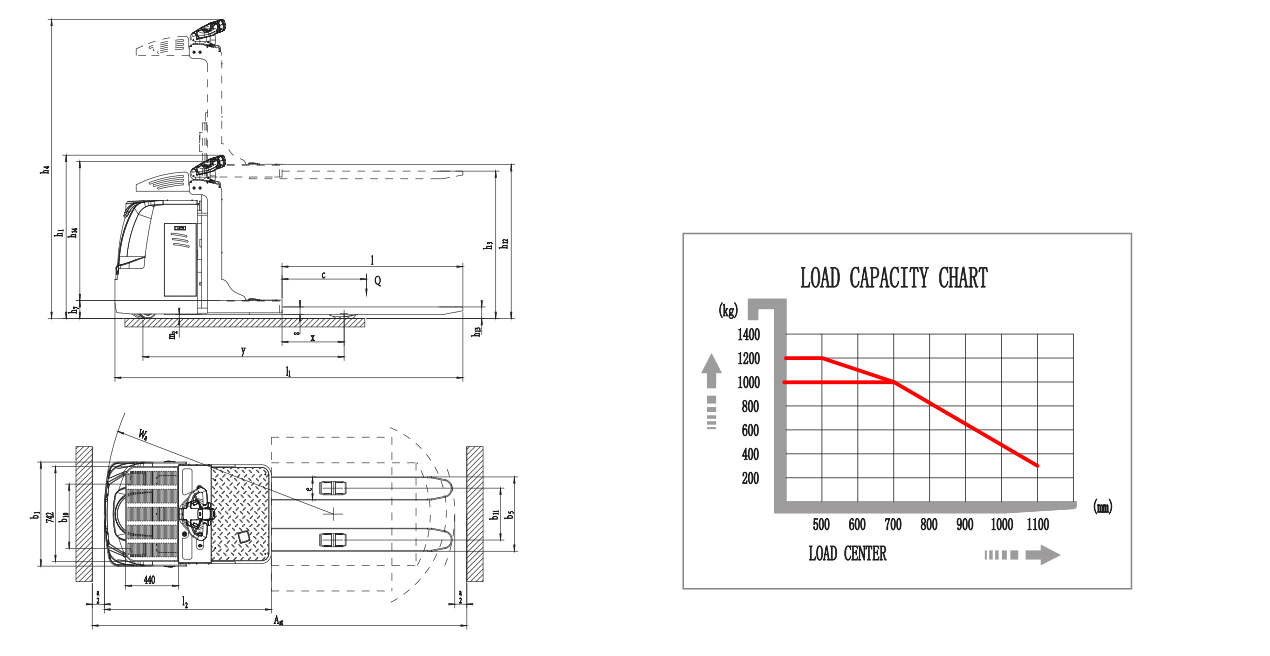

DIMENSION Drawing:

Manufacturer's type designition		OPL10G	OPL12G
Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas		Electric	Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Order-picker	Order-picker
Rated capacity/rated load	Q(kg)	1000	1200
Load centre distance	c(mm)	700	500
Load distance, centre of drive axle to fork	x(mm)	515	515
Wheelbase	y(mm)	1669	1669
Service weight	kg	1232	1225
Axle loading, laden front/rear	kg	764/1468	886/1539
Axle loading, unladen front/rear	kg	875/358	875/350
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane	Polyurethane
Tyre size, front		Φ250 x 80	Φ250x80
Tyre size, rear		Φ80x84	Φ80x84
Additional wheels (dimensions)		Φ150x60	Φ150x60
Wheels, number front/rear (x = driven wheels)		1x+1/4	1x+1/4
Tread, front	b10(mm)	502	502
Tread, rear	b11(mm)	405	405
Height, mast lowered	h1(mm)	1275	1275
Lift	h3(mm)	1140	1140
Height, mast extended	h4(mm)	2335	2335
Seat height relating to SIP/stand height	h7(mm)	140	140
Height drawbar in driving position min./max.	h14(mm)	1085	1085
Stand height elevated	h12(mm)	1200	1200
Height, lowered	h13(mm)	90	90
Overall length	l1(mm)	2886	2536
Length to face of forks	l2(mm)	1386	1386
Overall width	b1/b2(mm)	812	812
Fork dimensions DIN ISO 2331	s/e/l(mm)	60/180/1500	60/180/1150
Fork spread	b5(mm)	580	580
Ground clearance, centre of wheelbase	m2(mm)	31	31
Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	3108	2873
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	3108	2895
Turning radius	Wa(mm)	1901	1901
Travel speed, laden/unladen	km/h	7/7.1	7/7.1
Travel speed, laden/unladen, backwards	km/h	7/7.1	7/7.1
Lift speed, laden/unladen	m/s	0.1/0.15	0.1/0.15
Lowering speed, laden/unladen	m/s	0.08/0.07	0.08/0.07
Max. gradeability, laden/unladen	%	8/15	8/15
Service brake		Electromagnetic	Electromagnetic
Drive motor rating S2 60 min	kW	1.5	1.5
Lift motor rating at S3 15%	kW	2.2	2.2
Battery voltage/nominal capacity K5	(V)/(Ah)or kWh	24/240	24/240
Battery weight	kg	200	200
Sound pressure level at the driver's seat	dB(A)	70	70
