Model

OPSM

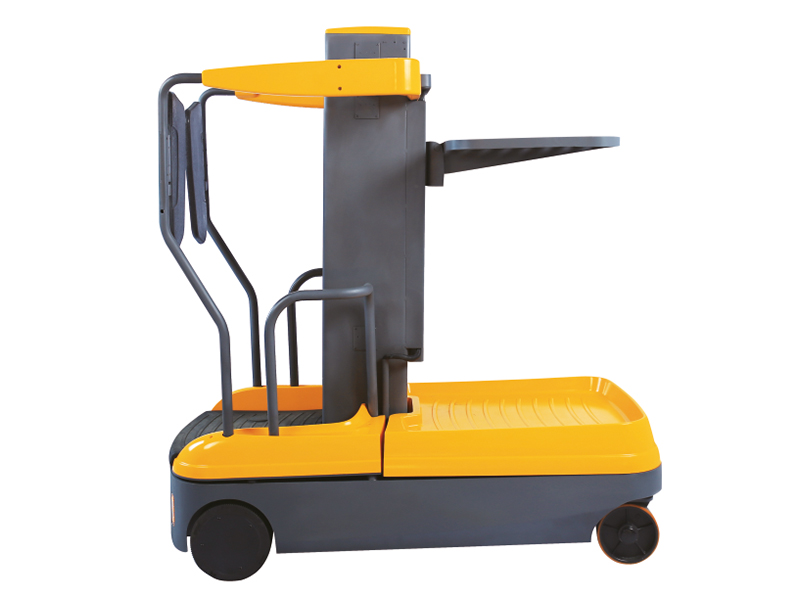

Mini Order Picker

OPSM order picker is a high-powered solution for facilities and outlets that regularly handle high lift tasks, including stock picking, inspection, maintenance and installation. It is the best order picker rising for liberation of labor.
  • Mini Order Picker OPSM
  • Mini Order Picker OPSM
  • Mini Order Picker OPSM
  • Mini Order Picker OPSM
  • Mini Order Picker OPSM

Advantage:

The stable mast allows reachable heights of up to 5m, easy for picking-up or storage of items at 3rd rack level, price tags exchanged or ceiling upholster and light fixing.

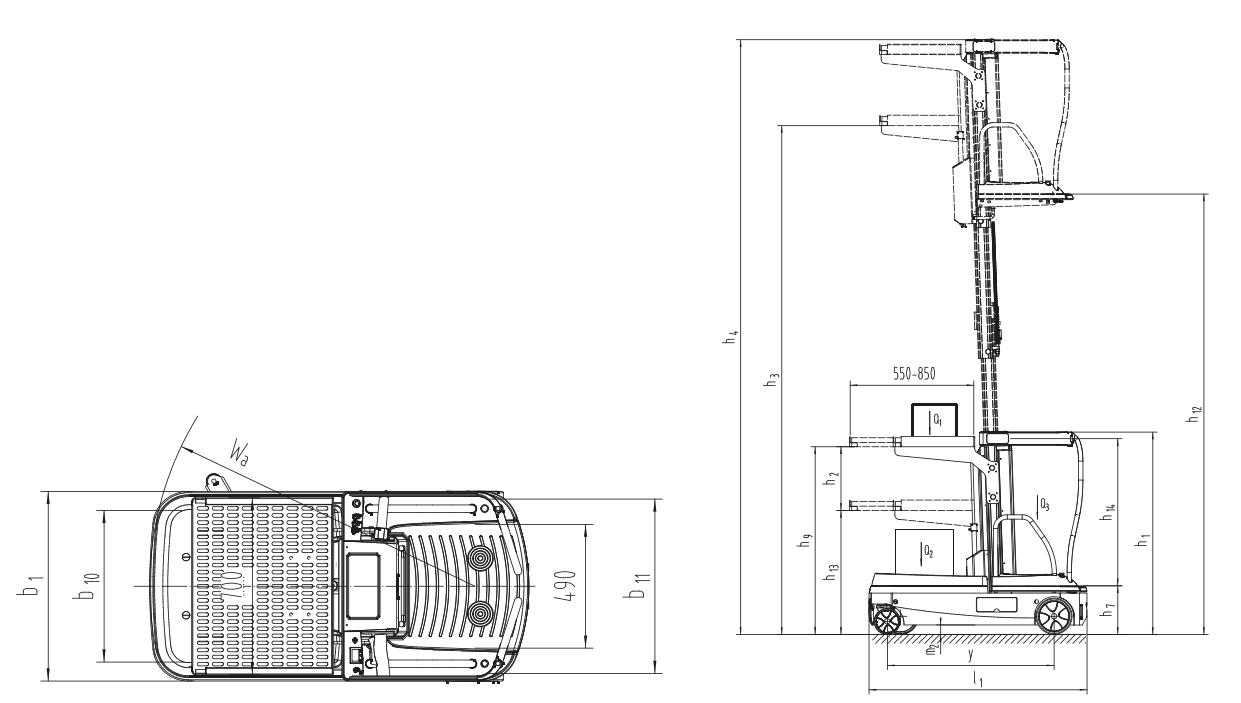

DIMENSION Drawing:

Manufacturer's type designition



OPSM

Drive: electric (battery type, mains, ...), diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Order-picker

Rated capacity/rated load

Q(kg)

90/150/130

Wheelbase

y(mm)

1147

Service weight

kg

755/775

Axle loading, unladen front/rear

kg

310/445

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ180x50

Tyre size, rear



Φ250x60

Wheels, number front/rear (x = driven wheels)



2/2x

Tread, front

b10(mm)

600

Tread, rear

b11(mm)

690

Height, mast lowered

h1(mm)

1590

Lift

h3(mm)

3665

Height, mast extended

h4(mm)

4255

Seat height relating to SIP/stand height

h7(mm)

335

Height drawbar in driving position min./max.

h14(mm)

1120

Additional lift

h9(mm)

1270

Stand height, elevated

h12(mm)

3000

Height, lowered

h13(mm)

1000

Overall length

l1(mm)

1500

Overall width

b1/b2(mm)

750

Ground clearance, centre of wheelbase

m2(mm)

66

Turning radius

Wa(mm)

1300

Travel speed, laden/unladen

km/h

4.5

Travel speed, laden/unladen, backwards

km/h

4.5

Lift speed, laden/unladen

m/s

0.14

Lowering speed, laden/unladen

m/s

0.13

Max. gradeability, laden/unladen

%

5

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

0.5(DC)/0.68(AC)

Lift motor rating at S3 15%

kW

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/88(220)

Battery weight

kg

52(140)

Sound pressure level at the driver’s seat

dB (A)

70
The stable mast allows reachable heights of up to 5m, easy for picking-up or storage of items at 3rd rack level, price tags exchanged or ceiling upholster and light fixing.
