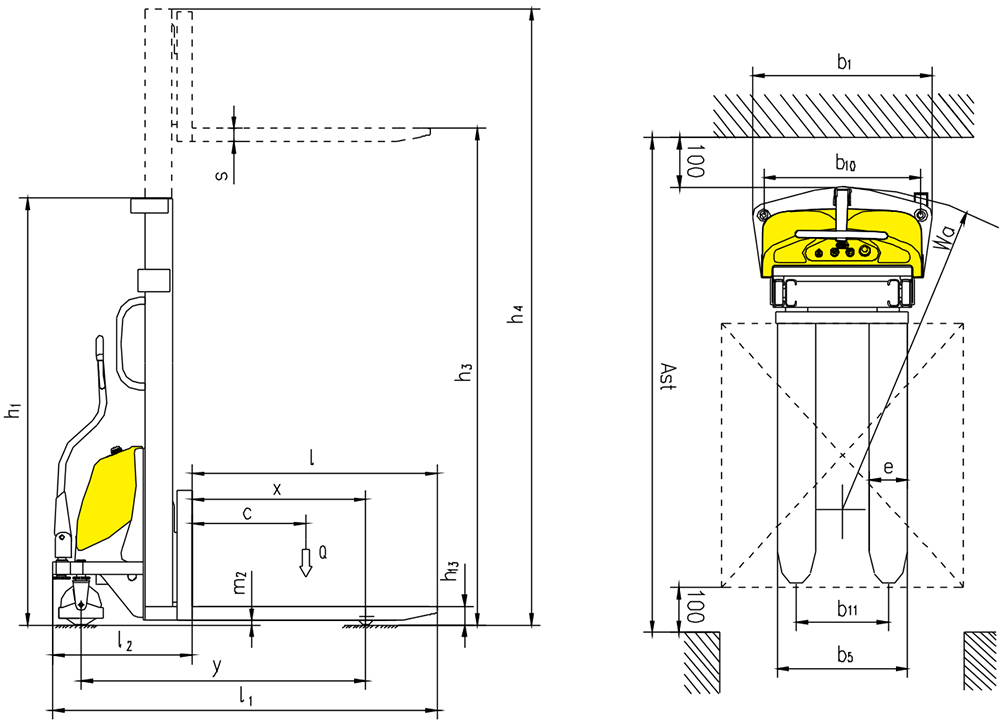

Semi-electric Stacker

Manufacturer's type designition

Overall forks

CDD10B-III

CDD15B-III

Drive: electric (battery type, mains,…diesel, petrol, fuel gas

Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker

Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1000

1500

Load centre distance

c(mm)

500

500

Load distance, centre of drive axle to fork

x(mm)

710

710

Wheelbase

y(mm)

1185

1265

Service weight

kg

355/410/445/475/495

405/475/480/530/550

Axle loading, laden front/rear

kg

520/890

640/1335

Axle loading, unladen front/rear

kg

325/85

370/105

Tyres: solid rubber, super elastic, pneumatic, polyurethane

NYLON

NYLON

Tyre size, front

Φ180x50

Tyre size, rear

Φ80x70

Wheels, number front/rear (x = driven wheels)

2/2

Tread, front

b10(mm)

700

Tread, rear

b11(mm)

410/510

Height mast lowered

h1(mm)

2090/1840/2090/2240/2340

Max. lift height

h3(mm)

1600/2500/3000/3300/3500

Height mast extended

h4(mm)

2090/3060/3560/3860/4060

Height of wheel arms

h8(mm)

81

Height lowered

h13(mm)

90

Overall length

l1(mm)

1678

1740

Length to face of forks

l2(mm)

475

555

Overall width

b1/b2(mm)

800

800

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/170/1070

60/170/1070

Fork spread

b5(mm)

570/695

570/695

Ground clearance, centre of wheelbase

m2(mm)

21

21

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2291

2371

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2257

2337

Turning radius

Wa(mm)

1425

1505

Lift speed, laden/unladen

m/s

0.07/0.10

0.07/0.10

Lowering speed, laden/unladen

m/s

0.15/0.12

0.12/0.15

Service brake

Mechanical brake

Mechanical brake

Lift motor rating at S3 15%

kW

1.6

2

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

12/120

12/120

Battery weight

kg

45

90

Sound pressure level at the driver's seat

dB(A)

70

70

Manufacturer's type designition

Adjustable forks

CDD10B-III

CDD15B-III

Drive: electric (battery type, mains,…diesel, petrol, fuel gas

Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker

Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1000

1500

Load centre distance

c(mm)

500

500

Load distance, centre of drive axle to fork

x(mm)

654

636

Wheelbase

y(mm)

1185

1265

Service weight

kg

385/440/475/505/525

435/510/535/560/580

Axle loading, laden front/rear

kg

540/900

661/1349

Axle loading, unladen front/rear

kg

345/95

385/125

Tyres: solid rubber, super elastic, pneumatic, polyurethane

NYLON

NYLON

Tyre size, front

Φ180x50

Tyre size, rear

Φ80x70

Wheels, number front/rear (x = driven wheels)

2/2

Tread, front

b10(mm)

700

Tread, rear

b11(mm)

410(510)

Height mast lowered

h1(mm)

2090/1840/2090/2240/2340

Max. lift height

h3(mm)

1600/2500/3000/3300/3500

Height mast extended

h4(mm)

2090/3060/3560/3860/4060

Height of wheel arms

h8(mm)

81

Height lowered

h13(mm)

90

Overall length

l1(mm)

1735

1835

Length to face of forks

l2(mm)

531

629

Overall width

b1/b2(mm)

967

967

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/142/1070

60/142/1070

Fork spread

b5(mm)

295/930

295/930

Ground clearance, centre of wheelbase

m2(mm)

21

21

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2315

2407

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2300

2396

Turning radius

Wa(mm)

1425

1505

Lift speed, laden/unladen

m/s

0.07/0.10

0.07/0.10

Lowering speed, laden/unladen

m/s

0.15/0.12

0.12/0.15

Service brake

Mechanical brake

Mechanical brake

Lift motor rating at S3 15%

kW

1.6

2

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

12/120

24/120

Battery weight

kg

45

90

Sound pressure level at the driver's seat

dB(A)

70

70
