Semi-electric Stacker

Manufacturer's type designition

CDD15B-E

CTD15B-E

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas

Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker

Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c(mm)

400

400

Load distance, centre of drive axle to fork

x(mm)

650

650

Wheelbase

y(mm)

1235

1235

Service weight

kg

335/395/415/425/435

370/430/450/460/470

Axle loading, laden front/rear

kg

375/1540

395/1555

Axle loading, unladen front/rear

kg

280/135

300/150

Tyres: solid rubber, super elastic, pneumatic, polyurethane

NYLON

NYLON

Tyre size, front

Φ180x50

Φ180x50

Tyre size, rear

Φ80x70

Φ98x82

Wheels, number front/rear (x = driven wheels)

2/2

2/2

Tread, front

b10(mm)

700

700

Tread, rear

b11(mm)

428/531

1036/1412

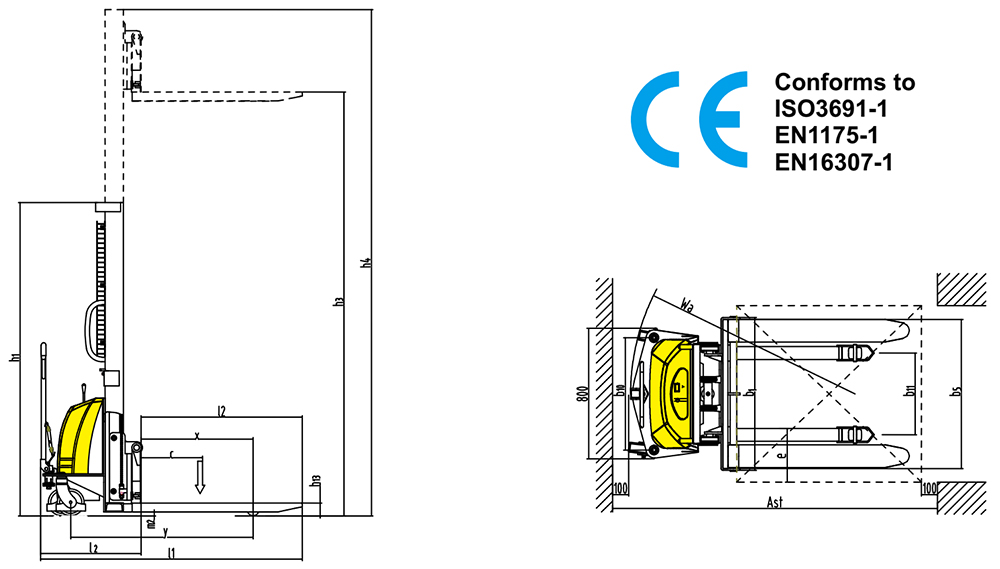

Height, mast lowered

h1(mm)

2100/1850/2100/2250/2350

2145/1895/2145/2295/2395

Max. lift height

h3(mm)

1600/2500/3000/3300/3500

1600/2500/3000/3300/3500

Height, mast extended

h4(mm)

2100/3060/3560/3860/4060

2145/3100/3600/3900/4100

Height, lowered

h13(mm)

90

90

Overall length

l1(mm)

1745/1825

1745/1825

Length to face of forks

l2(mm)

1070/1150

1070/1150

Overall width

b1/b2 (mm)

967

1152-1524

Fork dimensions DIN ISO 2331

s/e/l (mm)

60/142/1070(1150)

60/142/1070(1150)

Fork spread

b5(mm)

295-930

295-930

Ground clearance, centre of wheelbase

m2 (mm)

20

20

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2288

2288

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2267

2267

Turning radius

wa(mm)

1425

1425

Lift speed, laden/unladen

m/s

0.05/0.08

0.05/0.08

Lowering speed, laden/unladen

m/s

0.1/0.09

0.1/0.09

Service brake

Mechanical brake

Mechanical brake

Lift motor rating at S3 15%

kW

1.5

1.5

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

12/120

12/120

Battery weight

kg

45

45

Sound pressure level at the driver’s seat

dB (A)

70

70
