Counter Balanced Reach Truck CQD25-D Suppliers

home / product / Narrow Aisle Truck / Counter Balanced Reach Truck

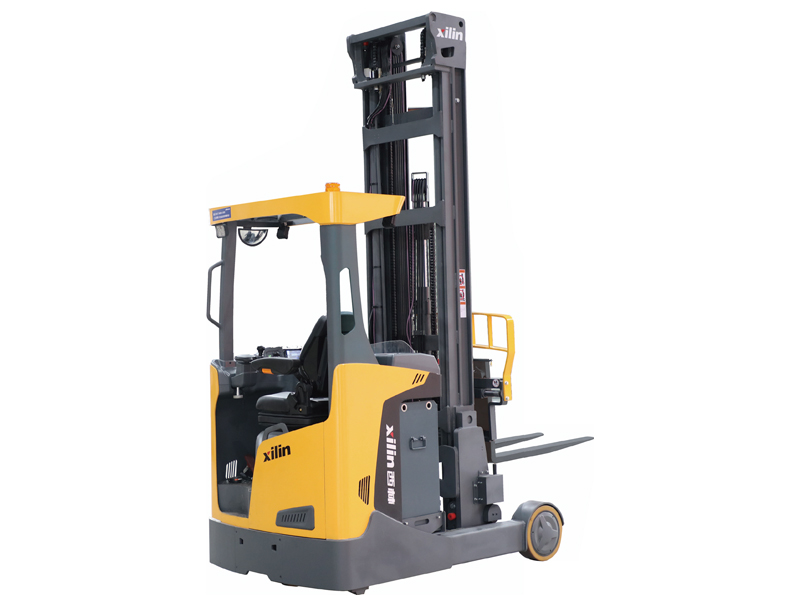

  • Counter Balanced Reach Truck CQD25-D
  • Counter Balanced Reach Truck CQD25-D
Model

CQD25-D

Counter Balanced Reach Truck

  • Counter Balanced Reach Truck CQD25-D
  • Counter Balanced Reach Truck CQD25-D

Advantage:

High Efficiency and Flexibility
● One-key start + password login, more convenient to start the truck
● Electric power steering system(EPS)
● 180/360 degree steering mode.
● AC motor provides high driving speed (laden/ unladen): 10.5/11 km per hour.
● 4-stage driving speed selection.
● Intelligently optimized turning speed control system: The system analyzes the tire angle, driving and steering direction, then automatically adjusts the speed to achieve maximum safety performance.
● Fork side camera system provides better view, avoids the problem of being blocked by the pallets while stacking.
● Luxurious cushion seat equipped with OPS function.
● Standard integral side shifter.		 The Console Has Been Fully Optimized and Upgraded
● The thumb switch imported from Germany, tilts forward fit to ergonomic design. convenient to operate; the thumb can conveniently control the front/rear button and the horn.
● The armrest is designed with a poly foam cushion, more comfortable for long-term operation.
● Switch button is integrated (to control LED headlights, fans, red light, etc.), with extended functions for easy operation.
● The steering wheel is adjustable front and rear, equipped with steering damping.
● The console is designed with multiple storage.
● Large-screen color instrument, real-time display of vehicle speed, working mode, working time, battery power, wheel angle and faults and other information (Option for mechanical control).
● With password login interface. (For magnetic control)
● All functions can be operated with touch screen control, such as forward/backward switch, headlight control, horn control, 180/360 degree by one-key switch of steering mode, etc.
● It can communicate with a camera system and display the image directly on the instrument.
● It can communicate with the vehicle weighing system and display the weight of the goods on the instrument in real-time (Option).
● It can communicate with the vehicle height positioning system, display the height of the forks on the instrument in real time, and carry out the operation of the fixed height/fixed floor. option(Option).
Safety and Stability
● The mast adopts an offset design, and optimizes the operator views.
● Height limit function, high-speed limit function, turning speed limit function.
● The mast moving speed will be automatically reduced while reaching the end position.
● FULL AC control system with CAN communication technology.
● The service brake is operated by a hydraulic brake and regenerative brake at the same time, with short braking distance.
● Automatic electromagnetic brake after parking.
● Seat with power-off switch while operator leaves the seat.
● Standard: warning lights, headlights, rearview mirrors.
● Option: ACS function (when the mast is lifted and moved forward, it can reduce the truck vibration)
Service Ability
● One-piece upper cover with open design, convenient to maintain the controller, lifting pumps, hydraulic devices, drive motors and brake systems, etc.
●Sideway battery can be moved out with mast together, convenient to maintain/replace the battery.
●All electric parts are integrated modular design, easy for installation/ maintenance.

Optional :
● Camera system
● Quick lifting function
● Weighing system
● Blue light
● Touch screen instrument
● High capacity battery( 800AH , 930AH )
● Lithium battery
● Documents holder

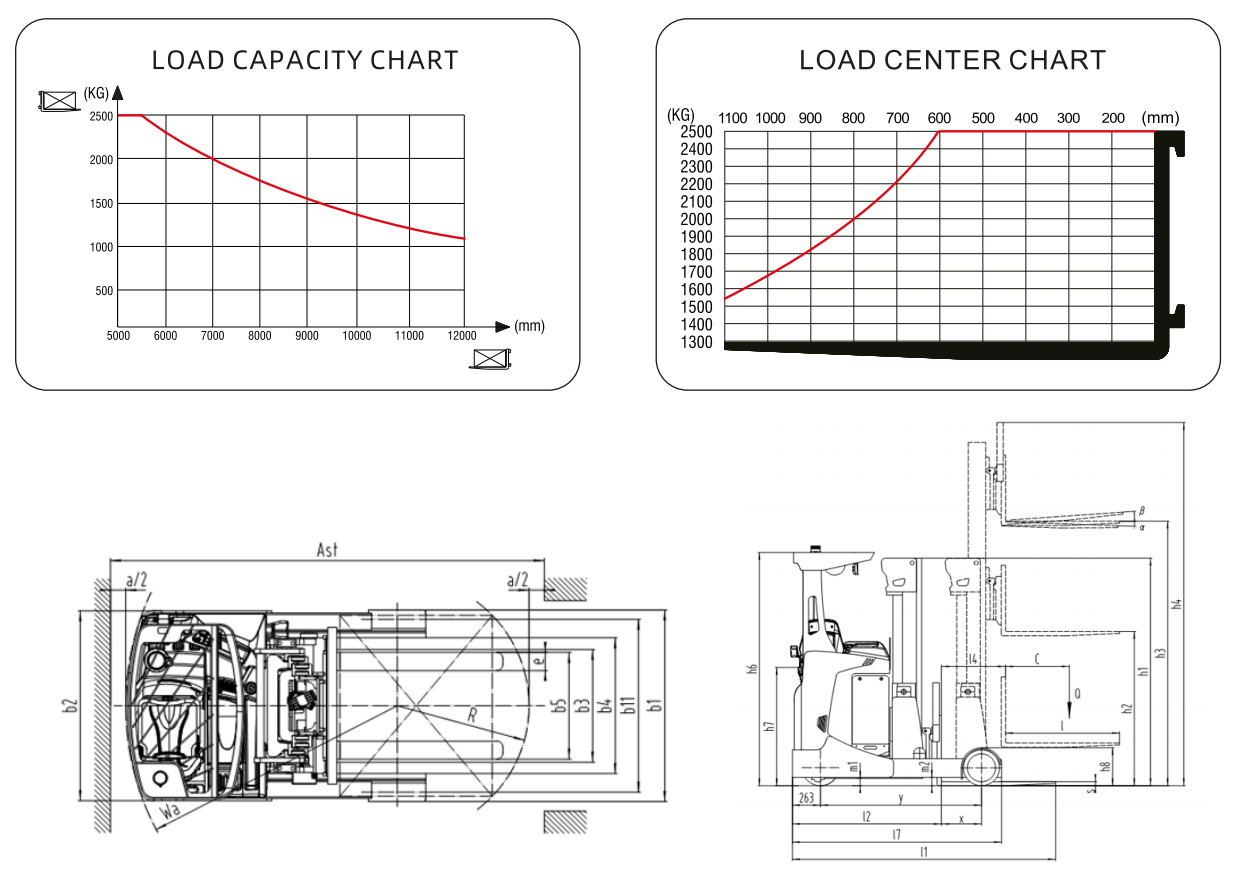

DIMENSION Drawing:

● Adjustable steering wheel ● Adjustable cushion seat ● The battery can be removed with the mast, and with the side-way structure to facilitate the maintenance or replacement of the battery.



Fully upgraded console
Large-screen instruments and finger-tip sticks, adopted Germany ELOBAU, with ergonomics design, can display battery power, wheel angle, faults and other information.		 Fork camera
The camera system is equipped on the fork, which provides a better view during fork moving, avoid the problem that view may be blocked by the pallet feet while stacking. The camera is made of stainless steel, IP protection grade is P69, the shockproof grade is 10G. Not afraid of bumps.		 One-niece cover
The cover can be opened to ensure that maintenance is easy and fast.
Wide view mast
The mast system and roof guard adopt the new structure and optimize the operators' view.		 Height positioning system
Adopt an absolute wire encoder. Start counting from 0.		 ASC forklift active stabilization system
When the mast moves forward and backward, the service brake will be locked automatically, which can ensure the truck does not move forward and backward improving the stability of the truck.


Manufacturer's type designition   C0D25-D
Drive: electric (battery type, mains,..), diesel, petrol, fuel gas   Electric
Operator type: hand, pedestrian, standing, seated,order-picker   Seated
Rated capacity/rated load   Q(kg) 2500
Load centre distance   c(mm) 600
Load distance, centre of drive axle to fork   x(mm) 378
Wheelbase   y(mm) 1650
Service weight   kg 5830
Axle loading, unladen front/rear   kg 2850/3180
Axle loading, fork retracted, unladen front/rear   kg 2350/3750
Axle loading, fork advanced, laden front/rear   kg 1150/6950
Axle loading, fork retracted, laden front/rear   kg 2850/5330
Tyres: solid rubber, superelastic, pneumatic, polyurethane   Polyurethane
Tyre size, front   mm φ343×140
Tyre size, rear   mm φ343×140
Wheels, number front/rear(×=driven wheels)   1x/2
Tread, front   b10(mm) N/A
Tread, rear   b11(mm) 1195
Tilt of mast/fork carriage forward/backwards   a/b(°) 2/4
Height, mast lowered   h1 (mm)  2240/2490/2740/2340/2480/2740/3190/3390/3590/3890/4220/4520/4720/4820
Free lift(with load-backrest)   h2 (mm)  0/0/0/1400/1568/1800/2250/2450/2650/2950/3280/3580/3780/3880
Free lift(without load-backrest)   h2(*)(mm)  0/0/0/1736/1904/2136/2536/2736/2936/3236/3600/3900/4100/4200
Lift height   h3 (mm) 3000/3500/4000/5000/5500/6200/7400/8000/8600/9500/10200/11100/11700/12000
Height, mast extended   h4(mm) 3940/4440/4940/5940/6440/7140/8340/8940/9540/10440/11140/12040/12640/12940
Height of overhead guard (cabin)   h6(mm) 2210
Seat height relating to SIP/stand height   h7(mm) 1116
Height of wheel arms   h8(mm) 360
Overall length   l1(mm) 2610
Length to face of forks   l2(mm) 1536
Overall width    b1/b2(mm) 1345/1260
For dimensions DIN IS02331   s/e/l(mm) 45/125/1070
Fork carriageIS02328, class/type A, B   2B
Fork-carriage width   b3(mm) 928
Fork spread   b5(mm) 330/688
Distance between wheel arms/loading surfaces   b4(mm) 900
Reach distance   l4(mm) 600
Ground clearance, laden, below mast   m1(mm) 70
Ground clearance, centre of wheelbase   m2(mm) 60
1Aislewidth for pallets 1000×1200 crossways   Ast(mm) 2980
2Aislewidth for pallets 800×1200 lengthways   Ast(mm) 3025
Turning radius   Wa(mm) 1920
Length across wheel arms   I7(mm) 2100
Travelspeed,laden/unladen   km/h 10/12
Lift speed,laden/unladen   m/s 350/580
Lowering speed,laden/unladen   m/s 450/450
Reaching speed,laden/unladen   m/s 120/120
Gradeability,laden/unladen   % 10/11
Max.gradeability,laden/unladen   % 10/11
Service brake   Electromagnetic
Drive motor rating S260 min   kW 6.5(AC)
Lift motor rating at S315%   kW 15
Battery voltage/nominal capacity K₅   (V)/(Ah)or kWh 48/840
Battery weight   kg 1240
operation pressure   bar 18
Sound pressure level at the driver's seat   dB(A) 69.7
Option:
1)Camera
2)ASC
3)Lead-Acid Battery option :48V/700AH,48V/775AH ,48V/840AH,48V/930AH
4)Lithium battery option:48V/400AH,48V/450AH,48V/600AH ,48V/750AH ,48V/875AH

Mast table
Max. lifting height h3(mm) 3000  3500  4000  5000  5500  6200  7400  8000  8600  9500  10200  11100  11700  12000
Capacity, mast extended kg 2500  2500  2500  2500  2500  2350  1320  1215  1115  1500  1350  1250  1200  1100
Height, mast lowered h1(mm) 2240  2490  2740  2340  2480  2740  3190  3390  3590  3890  4220  4520  4720  4820
Free lift(with load-backrest) h2(mm) 0  0  0  1400  1568  1800  2250  2450  2650  2950  3280  3580  3780  3880
Free lift(without load-backrest) h2(mm) 0  0  0  1736  1904  2136  2536  2736  2936  3236  3600  3900  4100  4200
Height, mast extended h4(mm) 3940  4440  4940  5940  6440  7140  8340  8940  9540  10440  11140  12040  12640  12940

Load Capacity Chart With Battery 1215*500*751mm, 1250kg
  LC=600mm LC=700mm LC=800mm LC=900mm LC=1000mm
Lift height (mm) Residual Capacity (kg), with integral side shift
≤6000 2500  2226  2006  1826  1675
6200  2350  2092  1886  1716  1574
7400  2050  1825  1645  1497  1373
8000  1900  1692  1525  1387  1273
8600  1750  1558  1404  1278  1172
9500  1500  1336  1204  1095  1005
10200  1400  1246  1123  1022  938
10750  1350  1202  1083  986  904
11100  1250  1113  1003  913  837
11500  1200  1068  963  876  804
11700  1150  1024  923  840  770
12000  1100  979  883  803  737

Load Capacity Chart
Lead- acid 1215*420*751 1215*420*751 1215*500*751 1215*500*751
1000kg 1090Kg 1250Kg 1350 Kg
700 Ah 775 Ah 840 Ah 930 Ah
Lift height (mm) Residual Capacity (kg), LC=600mm, with integral side shift
≤6000 2500 2500 2500 2500
6200 2250 2300 2350 2400
7400 1950 2000 2050 2100
8000 1800 1850 1900 1950
8600 1650 1700 1750 1800
9500 1400 1450 1500 1550
10200 1300 1350 1400 1450
10750 1250 1300 1350 1400
11100 1200 1200 1250 1300
11500 1100 1150 1200 1250
11700 1050 1100 1150 1200
12000 1000 1050 1100 1150
