Narrow Aisle Forklift Truck CPD10A/CPD10B Suppliers

home / product / Narrow Aisle Truck / Narrow Aisle Forklift Truck

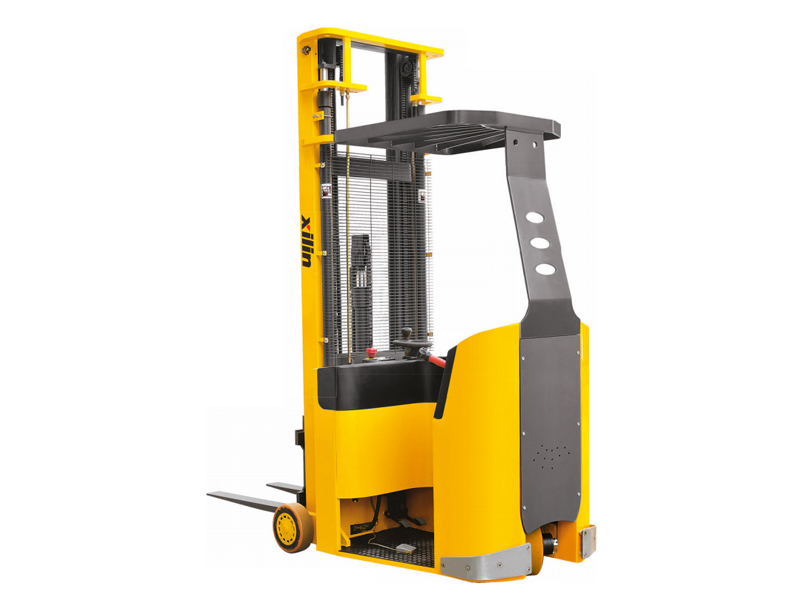

  • Narrow Aisle Forklift Truck CPD10A/CPD10B
Model

CPD10A/CPD10B

Narrow Aisle Forklift Truck

  • Narrow Aisle Forklift Truck CPD10A/CPD10B

Advantage:

● Advanced AC control system with MOSFET delivers smooth driving speed control for precise.
● Small turning radius, easy and smart to operate.
● Lean-on compartment reducing operator's fatigue.
● With regenerative braking system for driving and electronic braking system for parking.
● Low battery protection setting prolongs service life.
● With deadman switch on floor to cut off the power when operator leave the foot from cab.
● Lifting cylinders on the both of mast provides best visibility.
EPS offers follow advantages :
● Steering wheel automatic reset.
● Traveling speed automatically slow down when steering.
● Show the turning angles on the display

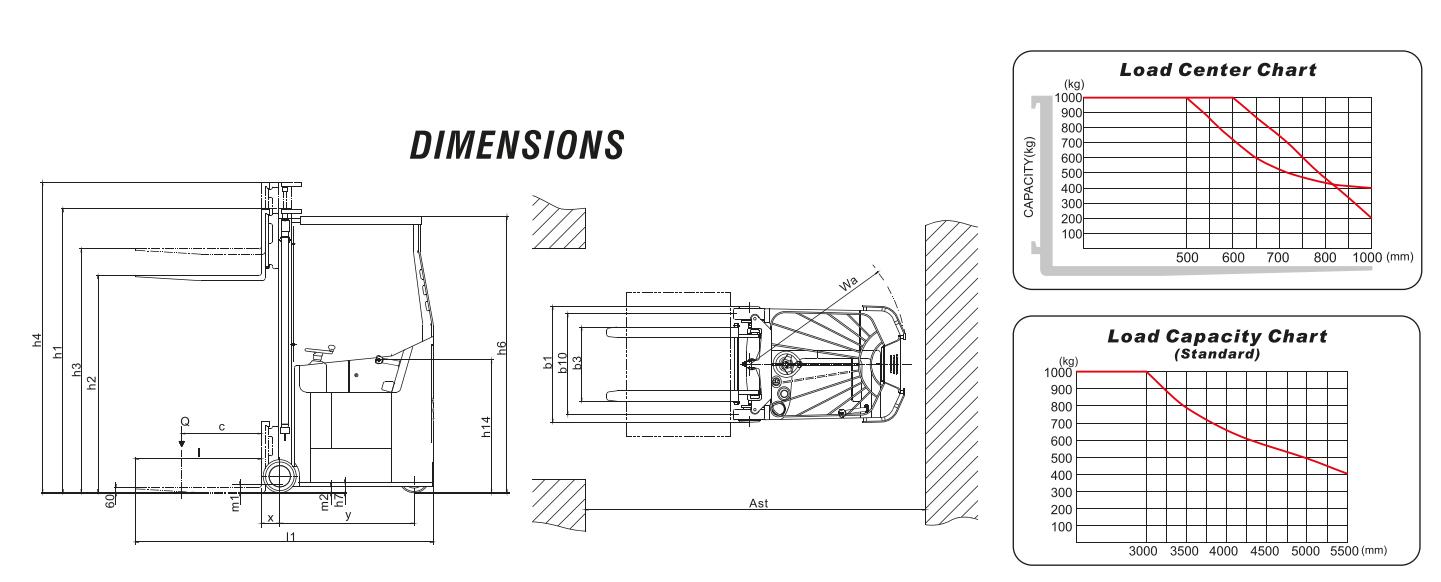

DIMENSION Drawing:

Manufacturer's type designition



CPD10A

CPD10AC

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Standing

Rated capacity/rated load

Q(kg)

1000

1000

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

145

245

Wheelbase

y(mm)

955

1015

Service weight

kg

2120

2180

Axle loading, laden front/rear

kg

2570/550

2630/550

Axle loading, unladen front/rear

kg

850/1270

910/1270

Tyres: solid rubber,  superelastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ250x80

Φ250x80

Tyre size, rear



Φ280x100

Φ280x100

Wheels, number front/rear (x = driven wheels)



1x+2

1x+2

Tread, front

b10(mm)

770

770

Tread, rear

b11(mm)

0

0

Height, mast lowered

h1(mm)

2155

2155

Free lift

h2(mm)

1540

1540

Max. lift height

h3(mm)

3000

3000

Height, mast extended

h4(mm)

3565

3565

Height of overhead guard (cabin)

h6(mm)

2090

2090

Seat height relating to SIP/stand height

h7(mm)

75

75

Overall length

l1(mm)

2265

2425

Length to face of forks

l2(mm)

1315

1475

Overall width

b1/b2(mm)

890

890

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/950

35/100/950

Fork-carriage width

b3(mm)

615

615

Ground clearance, laden, below mast

m1(mm)

60

60

Ground clearance, centre of wheelbase

m2(mm)

50

50

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2700

2760

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2810

2870

Turning radius

wa(mm)

1200

1270

Travel speed, laden/unladen

km/h

5.8/6.0

5.8/6.0

Lift speed, laden/unladen

m/s

0.11/0.15

0.11/0.15

Lowering speed, laden/unladen

m/s

0.15/0.11

0.15/0.11

Max.Gradeability, laden/unladen

%

8/12

8/12

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

2.2

2.2

Lift motor rating at S3 15%

kW

3.0

3.0

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/360

24/360

Battery weight

kg

355

355

Oil volume for attachments

ℓ/min

/

7.5

Sound pressure level at the driver’s seat

dB (A)

70

70

Manufacturer's type designition



CPD10B

CPD10BC

CPD10BZ

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Standing

Standing

Rated capacity/rated load

Q(kg)

1000

1000

1000

Load centre distance

c(mm)

500

500

500

Load distance, centre of drive axle to fork

x(mm)

150

255

165

Wheelbase

y(mm)

995

1035

1035

Service weight

kg

2230

2320

2350

Axle loading, laden front/rear

kg

2730/500

2820/500

2850/500

Axle loading, unladen front/rear

kg

960/1270

1050/1270

1080/1270

Tyres: solid rubber,  superelastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Polyurethane

Tyre size, front



Φ250x80

Φ250x80

Φ250x80

Tyre size, rear



Φ280x100

Φ280x100

Φ280x100

Wheels, number front/rear (x = driven wheels)



1x+2

1x+2

1x+2

Tread, front

b10(mm)

770

770

770

Tread, rear

b11(mm)

0

0

0

Height, mast lowered

h1(mm)

2255

2255

2255

Free lift

h2(mm)

0

0

1600

Max. lift height

h3(mm)

5000

5000

5000

Height, mast extended

h4(mm)

5600

5600

5600

Height of overhead guard (cabin)

h6(mm)

2090

2090

2090

Seat height relating to SIP/stand height

h7(mm)

75

75

75

Overall length

l1(mm)

2310

2455

2365

Length to face of forks

l2(mm)

1360

1505

1415

Overall width

b1/b2(mm)

890

890

890

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/950

35/100/950

35/100/950

Fork-carriage width

b3(mm)

615

615

615

Ground clearance, laden, below mast

m1(mm)

60

60

60

Ground clearance, centre of wheelbase

m2(mm)

50

50

50

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2750

2820

2800

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2860

2930

2910

Turning radius

wa(mm)

1250

1300

1300

Travel speed, laden/unladen

km/h

5.8/6.0

5.8/6.0

5.8/6.0

Lift speed, laden/unladen

m/s

0.15/0.25

0.15/0.25

0.15/0.25

Lowering speed, laden/unladen

m/s

0.08/0.10

0.08/0.10

0.08/0.10

Max.Gradeability, laden/unladen

%

8/12

8/12

8/12

Service brake



Electromagnetic

Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

2.2

2.2

2.2

Lift motor rating at S3 15%

kW

3.0

3.0

3.0

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/360

24/360

24/360

Battery weight

kg

355

355

355

Oil volume for attachments

ℓ/min

/

7.5

/

Sound pressure level at the driver’s seat

dB (A)

70

70

70
* Option: Lithium battery 300AH (Charger 24V/100A)
