Model

CQD20-DF

Narrow Aisle Truck

Advantage:

● Dual driving mode offers a variety of driving options, such as longitudinal & lateral driving, omnidirectional translational driving of the entire forklift, as well as in-place steering around the front wheel center & the forklift center, fully meeting the demands of various operating scenarios and demonstrating a high degree of intelligence and flexibility.
●The multi-functional central control instrument system integrates operator permissions, an intelligent height positioning system, a dynamic display of the forklift's working status, operation control, and fault inquiry, achieving integrated intelligent management. It is industry-first and leading.
●Forklift imaging, turn speed reduction, four-speed modes, and dynamic stability with height-speed interlock enhance safety and stability during operations.
●The multi-language interface meets the needs of global users, enhancing the international competitiveness of the product.
●The ergonomic cab design, combined with a luxurious high-back shock-absorbing seat and an adjustable steering wheel, provides drivers with an ultimate comfortable experience.

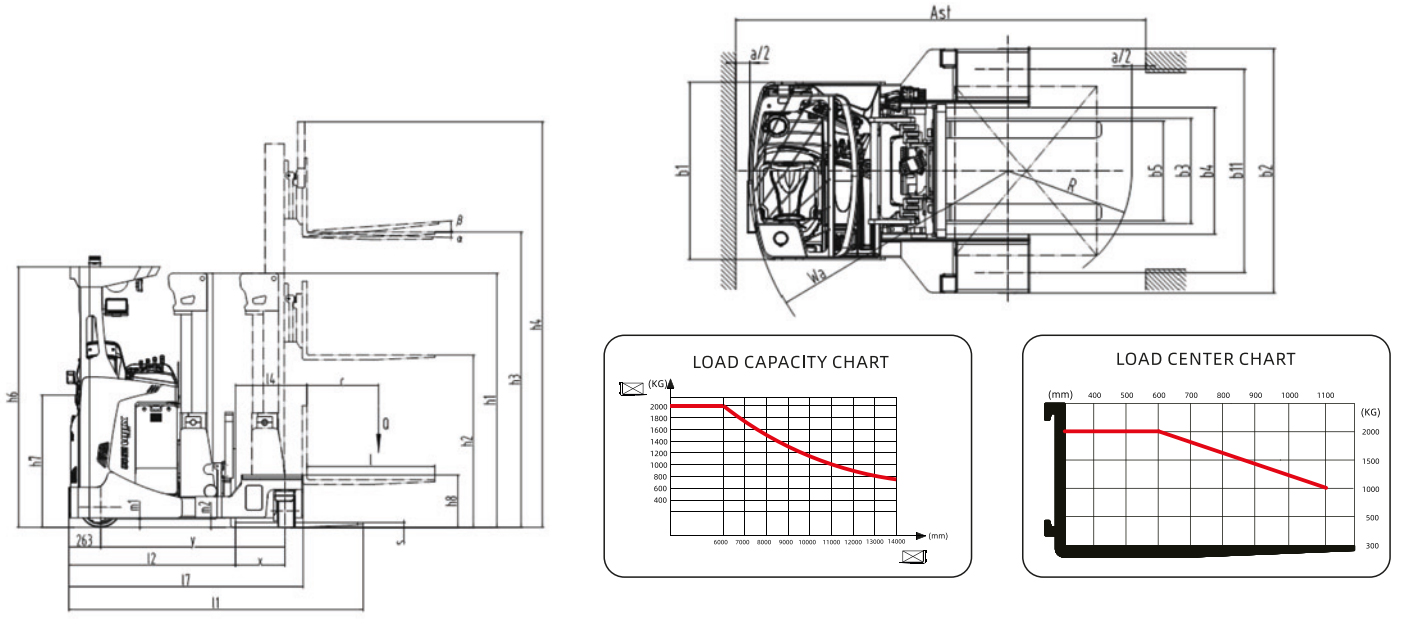

DIMENSION Drawing:

Model		COD20-DF
Drive:electric(battery type,mains,...),diesel,petrol,fuel gas		Electric
Operator type: hand, pedestrian, standing, seated,order-picker		Seated
Rated capacity/rated load	Q(kg)	2000
Load centre distance	c(mm)	600
Load distance, centre of drive axle to fork	x(mm)	420
Wheelbase	Y(mm)	1555
Service weight(battery inclu.)	kg	3800(5m)
Axle load, front/rear, unladen	kg	2120/1680
Axle loading, fork reach, laden front/rear	kg	5070/730
Axle loading, fork retract, laden front/rear	kg	3765/2035
Tyres: solid rubber, superelastic, pneumatic, polyurethane		PU
Wheel dimension, front	mm	343x140
Wheel dimension, rear	mm	285x140
Wheel number, front/rear(x=driving wheel)		1x/2
Tread, front	b10(mm)	0
Tread, rear	b11(mm)	1445
Tilt of mast/fork carriage forward/backwards	α/β(°)	2/4
Height, mast lowered	h1(mm)	2240/2490/2740/2340/2740/3190/3390/3590/3890/4125/4425/4788/4890
Free lift	h2(mm)	0/0/0/1400/1800/2250/2450/2650/2950/3185/3485/3785/3950
Lift	h3(mm)	3000/3500/4000/5000/6200/7400/8000/8600/9500/10200/11100/12000/12500
Max. height of mast, extended	h4(mm)	3940/4440/4940/5940/7140/8340/8940/9540/10440/11140/12040/12940/13440
Height of overhead guard (cabin)	h6(mm)	2210
Seat height relating to SIP/stand height	h7(mm)	1000
Height of wheel arms	h8(mm)	450
Overall length	l1(mm)	2490
Length to face of forks	l2(mm)	1396
Overall width across chassis	b1/b2(mm)	1260/1736
Fork dimensions DIN IS02331	s/e/l(mm)	40/120/1070
Fork carriage IS02328, class/type A, B		2B
Fork-carriage width	b3(mm)	928
Fork spread	b5(mm)	708
Distance between wheel arms/loading surfaces	b4(mm)	900
Reach distance	l4(mm)	600
Ground clearance, laden, below mast	m1(mm)	70
Ground clearance, centre of wheelbase	m2(mm)	80
Aisle width for pallets 1000×1200 crossways	Ast(mm)	2880
Aisle width for pallets 800×1200 lengthways	Ast(mm)	2930
Turning radius	Wa(mm)	1820
Length across wheel arms	l7(mm)	1960
Travel speed,laden/unladen	Km/h	10.5/11
Lifting speed,laden/unladen	m/s	0.3/0.46
Lowering speed,laden/unladen	m/s	0.5/0.56
Reach speed,laden/unladen	m/s	0.12/0.12
Gradeability,laden/unladen	%	10/10
Max.gradeability,laden/unladen	%	10/10
Driving motor power	kW	6.5
Lifting motor power	kW	8.2
Battery voltage/rated capacity	V/Ah	48/500
Battery weight(±5%)	kg	870
Operating pressure	bar	160
Oil volume	l/min	6.5
Noise level at operator's ear, according to DIN12053	dB(A)	65

Remark: Special size fork width and length can be made according to customer's requirement.
