Model

QDD25R

Electric Stock Tractor

● QDD25R Stock Tractor is featuring a 264x181mm/10.4x7.1inch cargo deck and 2200kgs/4840lbs towing capacity, which is built to work its way through the narrow aisles place, widely used in factory, dock and warehouse.

Advantage:

● Small & exquisite figure, low noise, environmentally friendly.

● Narrow body of small turning radius, especially suitable for narrow aisle.

● Available with optional ladder on the back for picking orders from the second and third shelf level. 4 step ladder and 6 step ladder allows operator to pick up goods from high places quickly and easily .

● With rubber mat in the front compartment, avoid hitting the knee of operator during operation.

● The single pedal for accelerator and brake ,safety and easy to operate .

● The ergonomics steering console is easily for operator to place packages from the shelves to the platform without interference from the console or the steering wheel.

● With H type driving axle, makes truck operation in high stability; and it is easy and convenient for the replacement and maintenance of the driving wheel.

● Combining hand brake with foot brake, which improves the safety performance of the truck.

● Side-way battery (Optional)

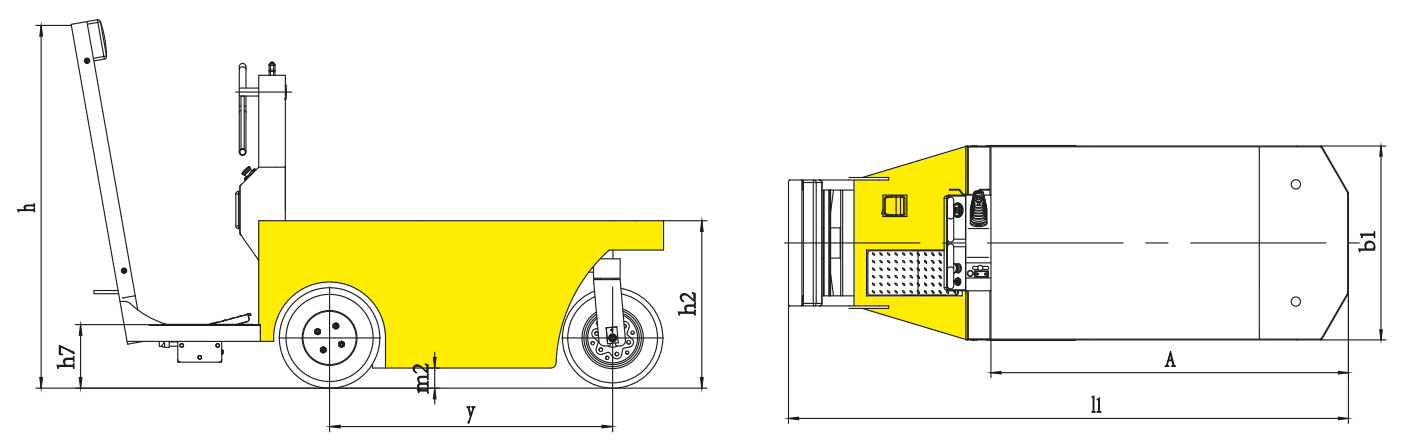

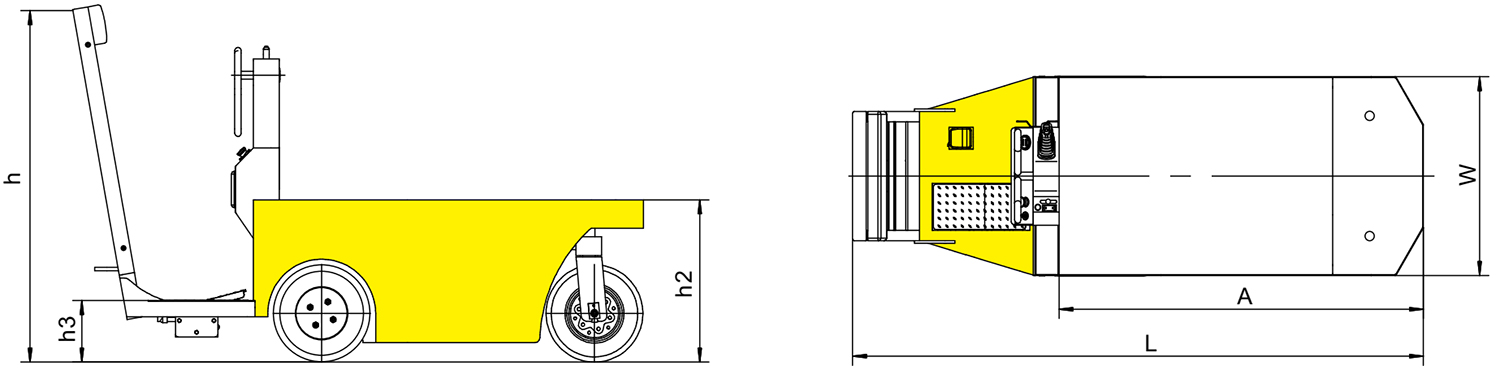

DIMENSION Drawing:

Manufacturer's type designition		QDD25R
Drive: electric, diesel, petrol, fuel gas		Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Standing
Rated capacity/rated load	Q(kg)	2200
Wheelbase	y(mm)	1060
Service weight	kg	700
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Solid rubber
Tyre size, front		15x4 ½-8
Tyre size, rear		15x4 ½-8
Wheels, number front/rear (x = driven wheels)		2x+1
Tread, rear	b11(mm)	662
Seat height relating to SIP/stand height	h7(mm)	238
Overall length	l1(mm)	2224
Overall width	b1/b2(mm)	770
Ground clearance, centre of wheelbase	m2(mm)	75
Turning radius	Wa(mm)	1280
Travel speed, laden/unladen	km/h	7/12
Gradeability, laden/unladen	%	6/10
Service brake		Hydraulic
Drive motor rating S2 60 min	kW	3.2
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	24/210
