Tow Tractor QDD25W Suppliers

home / product / Tow Tractor / Tow Tractor
  • Tow Tractor QDD25W
  • Tow Tractor QDD25W
Model

QDD25W

Tow Tractor

  • Tow Tractor QDD25W
  • Tow Tractor QDD25W

Advantage:

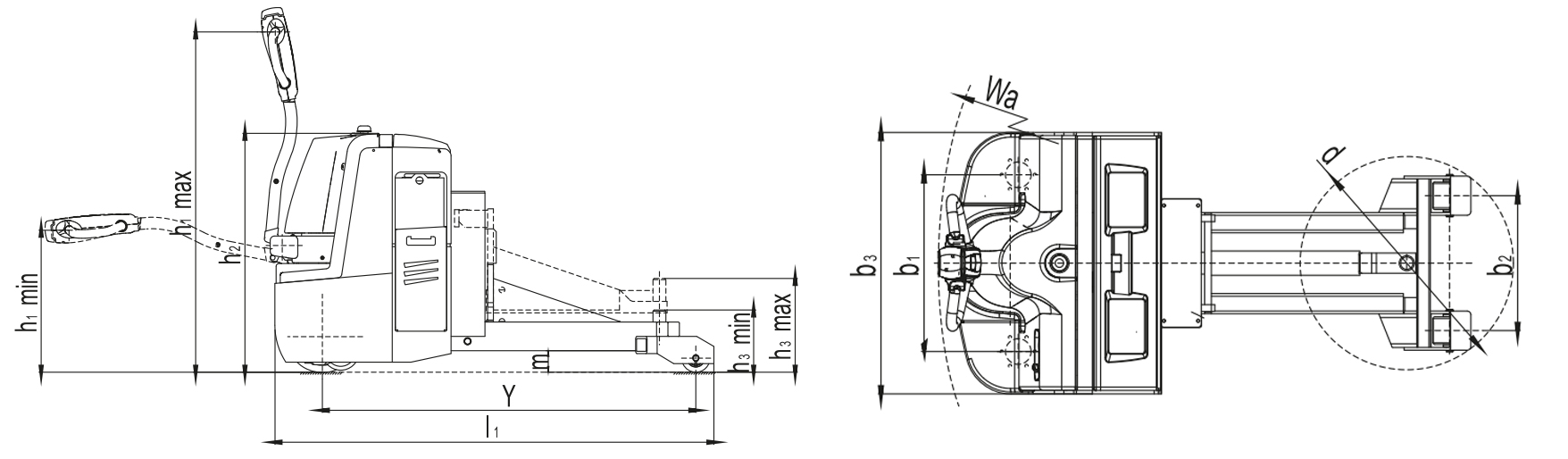

DIMENSION Drawing:

Manufacturer's type designition



QDD25W

Drive: electric, diesel, petrol, fuel gas



Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Rated capacity/rated load

Q(kg)

2500

Rated drawbar pull

F(N)

750

Wheelbase

y(mm)

1303

Service weight

kg

580

Axle loading, unladen front/rear

kg

445/135

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



250x70

Tyre size, rear



98x82

Wheels, number front/rear (x = driven wheels)



1x+2/2

Tread, front

b10(mm)

524

Tread, rear

b11(mm)

400

Height drawbar in driving position min./max.

h14(mm)

530/1230

Overall length

l1(mm)

1532

Overall width

b1/b2(mm)

775

Ground clearance, centre of wheelbase

m2(mm)

75

Turning radius

Wa(mm)

1515

Travel speed, laden/unladen

km/h

4.5/5.0

Gradeability, laden/unladen

%

5/12

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/165 (210)

Battery weight

kg

175

Sound pressure level at the driver’s seat

dB(A)

70
