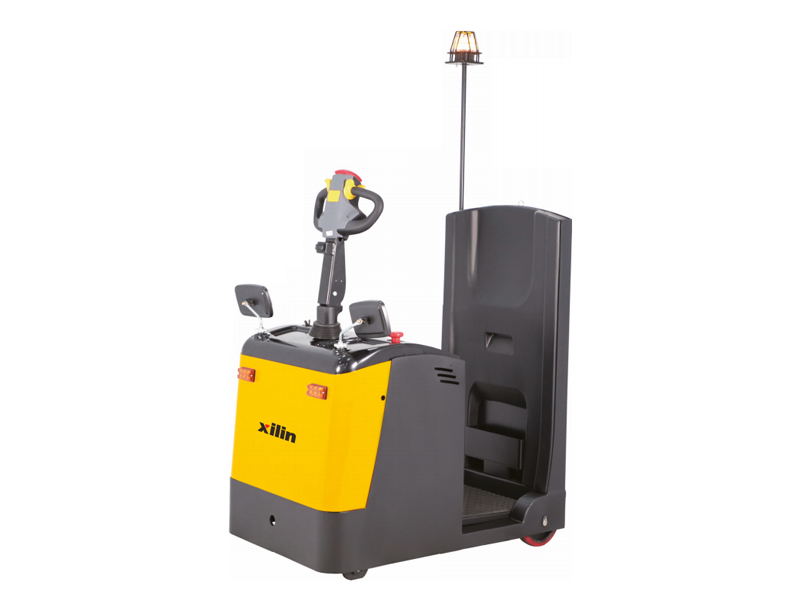

Model

QDD20H/QDD30H

Electric Tow Tractor

Advantage:

Feathers:

● Smothly steering system is easy operation , flexibly and more safely.

● With powerfull drive motor , great gradeability can reach 8% with full towing cap. 2000kg.

● Standing driving , floor is no-slip with anti-vibration function, back rest with reversible cushions, reduce fatigue, back cushion height can be adjustable according to the driver's height .

● Deadman brake service.

● Stepless speed control.

● With warning light.

● Sideway battery.

● Built-in Charger

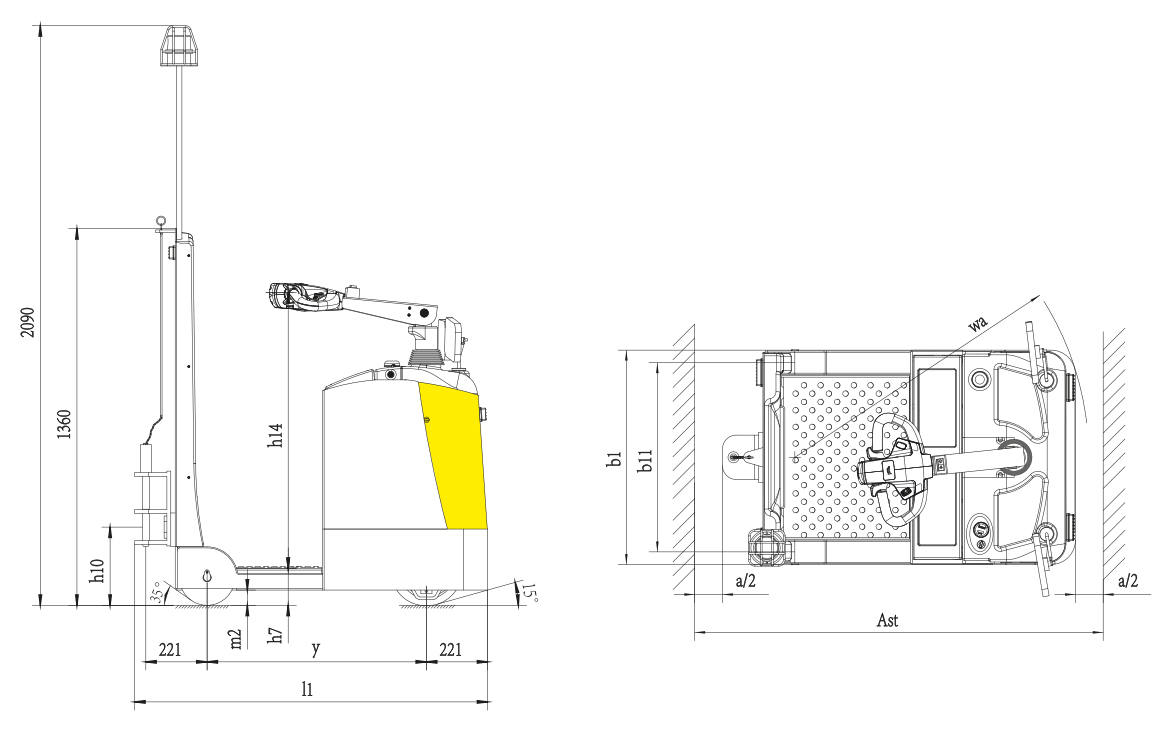

DIMENSION Drawing:

Manufacturer's type designition		QDD20H	QDD30H
Drive: electric, diesel, petrol, fuel gas		Electric	Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Standing	Standing
Rated capacity/rated load	Q(kg)	2000	3000
Rated drawbar pull	F(N)	500	750
Wheelbase	y(mm)	790	790
Service weight	kg	625	650
Axle loading, unladen front/rear	kg	395/230	400/250
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Pneumatic	Pneumatic
Tyre size, front		Φ250x70	Φ250x70
Tyre size, rear		Φ200x50	Φ200x50
Wheels, number front/rear (x = driven wheels)		1X+2	1X+2
Tread, rear	b11(mm)	682	682
Seat height relating to SIP/stand height	h7(mm)	135	135
Height drawbar in driving position min./max.	h14(mm)	1010/1350	1010/1350
Overall length	l1(mm)	1273	1273
Overall width	b1/b2(mm)	773	773
Ground clearance, centre of wheelbase	m2(mm)	55	55
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	1473	1473
Turning radius	Wa(mm)	1070	1070
Travel speed, laden/unladen, backwards	km/h	7/7.1	6.5/7.1
Max. drawbar pull, laden/unladen	N	2000	2500
Gradeability, laden/unladen	%	8/20	5/20
Service brake		Regenerative brake	Regenerative brake
Drive motor rating S2 60 min	kW	1.5	2.2
Battery voltage/nominal capacity K5	(V)/(Ah) or kWh	24/210	24/240
Battery weight	kg	196	240
Sound pressure level at the driver’s seat	dB(A)	70	70
