  • Electric Rider Stacker CDDK10/CDDK12/CDDK15
  • Electric Rider Stacker CDDK10/CDDK12/CDDK15
Model

CDDK10/CDDK12/CDDK15

Electric Rider Stacker

Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.
  • Electric Rider Stacker CDDK10/CDDK12/CDDK15
  • Electric Rider Stacker CDDK10/CDDK12/CDDK15

Advantage:

CDDK15-I/CDDK15-II
SAFETY AND PRODUCTIVITY:
● AC Motor eliminates carbon brush replacement.
● Multi-function display with BDI and hour meter.
● Side way battery is easy to maintain.
● Damping cushion for low-noise operation.
● Emergency reversing device equipped handle to keep safe.
● Auto deceleration function makes operation more safely.
● Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
● With brake in handle upright and horizontal position, increasing the safety of the truck.
● Emergency power disconnect switch.
● Turtle-shaped low speed switch.
● Stepless speed control.

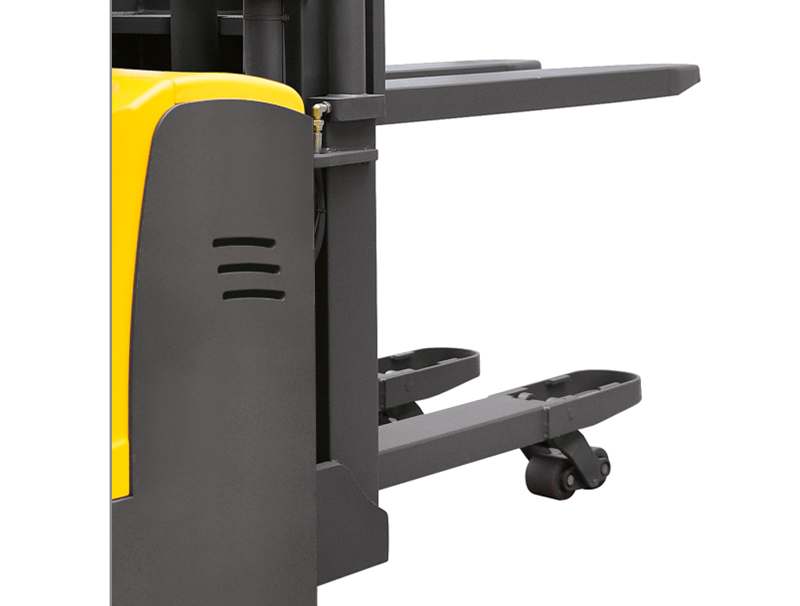

OPTIMUM STRUCTURAL DESIGN:
● Low barycenter ensures the stable operation.
● Vertical driving wheel ensures convenient maintenance and small turning radius.
● Water- proof and dust-proof motor structure, keeps the braking and motor more durable and reliable.
● The mast and the frame are dividable and exchangeable.
● Full free lifting, fit for low roof house. (3M lift height truck can enter into a 2M door)
SERVICEABILITY:
● Low voltage protection setting prolongs the battery life time.
● The electronic components' concentrated design simplifies the circuit and makes easily assemble, debug and maintain.

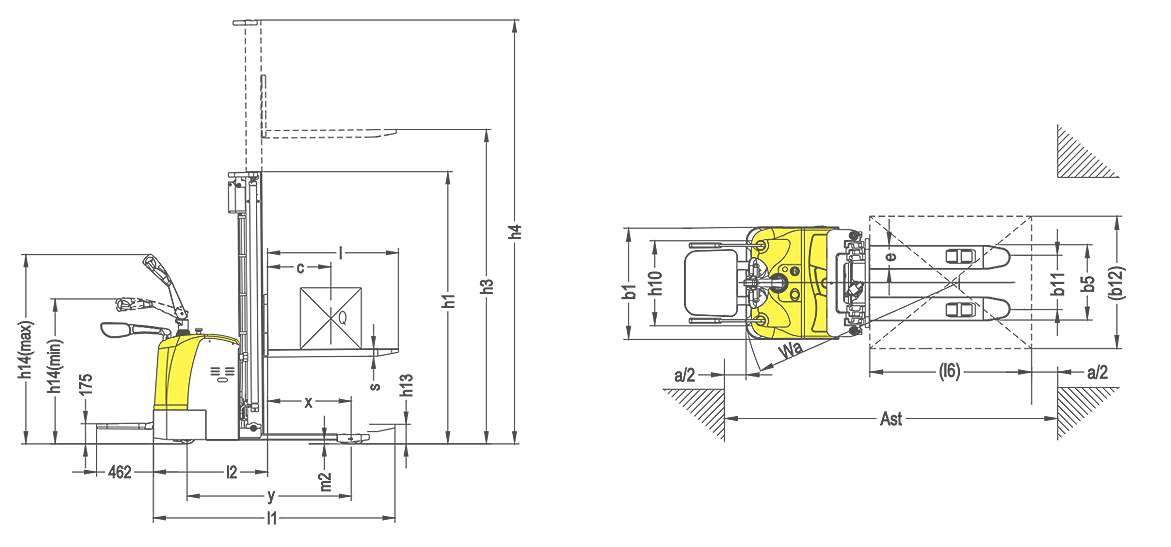

DIMENSION Drawing:

Model   CDDK10-III CDDK12-III
Load capacity/rated load Q(kg) 1000 1200
Load centre distance c(mm) 500 500
Load distance, centre of drive axle to fork x(mm) 600 600
Fork height, lowered h13(mm) 90 90
Tyre size,front mm φ250x70 φ250x70
Tyre size, rear mm φ80x70 φ80x70
Additional wheels(dimensions) mm φ150x60 φ150x60
wheels,number front rear(x=driven wheels)   1x+2/4 1x+2/4
Height, mast lowered h1(mm) 2087/1837/2087/2237 2087/1837/2087/2237
Max. Lift height h3(mm) 1600/2500/3000/3300 1600/2500/3000/3300
Height, mast extended h4(mm) 2087/3087/3587/3887 2087/3087/3587/3887
Height of tiller in drive position min./max. h14(mm) 1150/1450 1150/1450
Overall length l1(mm) 1955 1955
Length to face of forks l2(mm) 840 840
Overall width b1(mm) 850 850
Fork dimensions s/e/l(mm) 60/170/1070(1150) 60/170/1070(1150)
Width overall forks b5(mm) 570/695 570/695
Aisle width for pallets 800x1200 lengthways Ast(mm) 2440 2440
Turning radius wa(mm) 1575 1575
Travel speed,laden/unladen Km/h 7/7.1 7/7.1
Lift speed,laden/unladen m/s 0.11/0.17 0.10/0.16
Lowering speed,laden/unladen m/s 0.15/0.16 0.15/0.16
Battery voltage,nominal capacity K5 V/Ah 24/120 24/120
Battery weight kg 90 90
Battery dimensions l/w/h mm 753x178x240 753x178x240
Service weight (with battery) kg 700/750/780/800 800/850/870/890

Manufacturer's type designition



CDDK15-I

CDDK15-II

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Standing

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

672

697

Wheelbase

y(mm)

1378

1378

Service weight

kg

1330/1340/1350/1370/1530/1560/1595

1140/1190/1200/1290

1370/1400/1530

Me loading, laden fronVrear

kg

1830/1140

1830/1140

Me loading, unladen front/rear

kg

1040/470

1040/470

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ250x70

Φ250x70

Tyre size, rear



Φ80x84

Φ80x84

Additional wheels (dimensions)



Φ150x60

Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

1x+1/4

Tread, front

b10(mm)

580

580

Tread, rear

b11(mm)

404/530

404/530

Height, mast lowered

h1(mm)

1735/1985/2135/2235/2050/2210/2410

1735/1985/2135/2235

2050/2210/2410

Free lift

h2(mm)

1300/1550/1700/1800/1570/1740/1940

1300/1550/1700/1800

1570/1740/1940

Max. lift height

h3(mm)

2500/3000/3300/3500/4500/5000/5600

2500/3000/3300/3500

4500/5000/5600

Height, mast extended

h4(mm)

2955/3455/3755/3955/5030/5510/6110

2955/3455/3755/3955

5030/5510/6110

Height drawbar in driving position min./max.

h14(mm)

1150/1450

Height of wheel arms

h8(mm)

81

Height, lowered

h13(mm)

90

Overall length

l1(mm)

2020(2100)

Length to face of forks

l2(mm)

950

Overall width

b1/b2(mm)

850

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/180/1070(1150)

Fork spread

b5(mm)

570/695

Ground clearance, centre of wheelbase

m2 (mm)

31

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2535

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2515

Turning radius

Wa(mm)

1655

Travel speed, laden/unladen

km/h

7.0/7.1

Lift speed, laden/unladen

m/s

0-0.16/0-0.24

0.11/0.16

Lowering speed, laden/unladen

m/s

0-0.39/0-0.26

0.14/0.19

Max. gradeability, laden/unladen

%

8/15

8/15

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.5(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

3.2

3.0

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/300

24/240

24/300

Battery weight

kg

260

220

260

Sound pressure level at the driver's seat

dB (A)

70

70



Manufacturers type designition



CDDK15-II

CDDK15-III

Drive: electric (battery type, mains.…diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Standing

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c (mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

697

697

Wheelbase

y(mm)

1405

1405

Service weight

kg

760/810/835/860



Axle loading, laden front/rear

kg

1280/1070

1280/1070

Axle loading, unladen front/rear

kg

650/200

650/200

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ250x70

Φ250x70

Tyre size, rear



Φ80x70

Φ80x70

Additional wheels (dimensions)



Φ150x60

Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+2/4

1x+2/4

Tread, front

b10(mm)

586

586

Tread, rear

b11(mm)

410/525

410/525

Height mast lowered

h1(mm)

2087/1837/2087/2237/2337

2050/2210/2410

Free lift

h2(mm)

N/A

1570/1740/1940

Max. lift height

h3(mm)

1600/2500/3000/3300/3500

4500/5000/5600

Height mast extended

h4(mm)

2087/3087/3587/3887/4087

5030/5510/6110

Height drawbar in driving position min./max.

h14(mm)

1150/1450

1150/1450

Height of wheel arms

h8(mm)

81

81

Height lowered

h13(mm)

90

90

Overall length

l1(mm)

1990(2070)

1990(2070)

Length to face of forts

l2(mm)

920

920

Overall width

b1/b2(mm)

850

850

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/170/1070(1150)

60/170/1070(1150)

Fork spread

b5(mm)

570/695

570/695

Ground clearance, centre of wheelbase

m2(mm)

26

26

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2550

2550

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2520

2520

Turning radius

Wa(mm)

1655

1655

Travel speed, laden/unladen

km/h

6.5/67

6.5/67

Lift speed, laden/unladen

m/s

0.09/0.16

0.09/0.16

Lowering speed, laden/unladen

m/s

0.15/0.16

0.15/0.16

Max. gradeability. laden/unladen

%

6/15

6/15

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/200

24/200

Battery weight

kg

160

160

Sound pressure level at the driver's seat

dB(A)

70

70
*The weight shown is for 240AH battery
*Option: With EPS the drive wheel size is 250x80mm
Lithium battery 225AH (Charger 24V/230AH)
