  • Electric Walkie Straddle Stacker CTDR10/CTDR12/CTDR15
Model

CTDR10/CTDR12/CTDR15

Electric Walkie Straddle Stacker

  • Electric Walkie Straddle Stacker CTDR10/CTDR12/CTDR15

Advantage:

CTDR15-I/CTDR15-II
STRUCTURAL AND SAFETY:
● Advanced AC control system intelligentized regenerative brake system.
● Multi-function display with BDI and hour meter.
● Emergency reversing device.
● Auto deceleration system utilizes regenerative braking.
● Built-in pressure relief valve protects the trucks from overloads.
● Emergency power disconnect switch.
● Stepless speed control.
● With lifting limit switch to shut off pump motor at top max. lifting height.
● Small turning radius standing drive motor system, water-proof and dust-proof motor structure
SERVICEABILITY:
● Technology reduces wiring complexity.
● Side-way battery with roll-out system, convenient for replacement
Model Remarks
CTDR15-Ⅰ High configuration with proportional valve
CTDR15-Ⅱ Standard configuration
CTDR15-Ⅲ Light duty type
CTDR10-Ⅲ/12-Ⅲ Economy type (DC brushless)

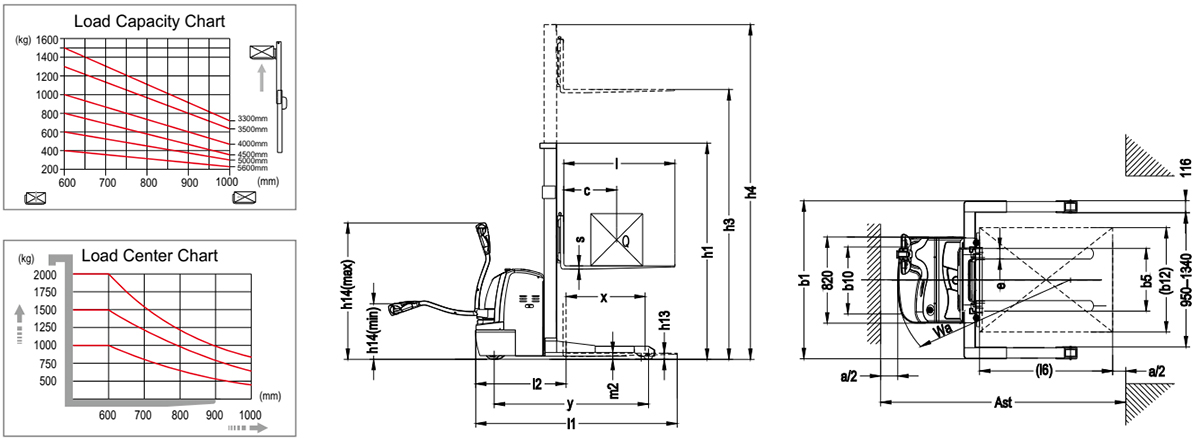

DIMENSION Drawing:

Model   CTDR10-III CTDR12-III
Load capacity/rated load Q(kg) 1000 1200
Load centre distance c(mm) 500 500
Load distance,centre of drive axle to fork x(mm) 795 795
Fork height, lowered h13(mm) 70 70
Tyre size, front mm φ250×70 φ250×70
Tyre size, rear mm φ98×82 φ98×82
Additional wheels(dimensions) mm φ150×60 φ150×60
Wheels,number front rear(x=driven wheels)   1x+1/4 1x+1/4
Mast height lowered h1(mm) 2145/1895/2145/2295
Free lift(option 2500~3500mm) h2(mm) ~
Max. lift height h3(mm) 1600/2500/3000/3300
Mast height extended h4(mm) 2145/3145/3645/3995
Height of tiller in drive position min./max. h14(mm) 670/1300 670/1300
Overall length l1(mm) 2015 2015
Length to face of forks l2(mm) 890 890
Overall width b1(mm) 1182-1582 1182-1582
Fork dimensions s/e/l(mm) 35/100/1070(1150) 35/100/1070(1150)
Width overall forks b5(mm) 200-800 200-800
Aisle width for pallets 800x1200 lengthways Ast(mm) 2420 2420
Turning radius Wa(mm) 1575 1575
Travel speed,laden/unladen Km/h 5.3/5.6 5.3/5.6
Lift speed,laden/unladen m/s 0.11/0.17 0.10/0.16
Lowering speed,laden/unladen m/s 0.15/0.16 0.15/0.16
Battery voltage,nominal capacity K5 V/Ah 24/120 24/120
Battery weight kg 90 90
Battery dimensions l/w/h mm 753x178x240 753x178x240
Service weight (with battery) kg 780/800/820/845 780/800/820/845

Manufacturers type designition



CTDR15-I

CTDR15-II

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

677

677

Wheelbase

y(mm)

1420

1420

Service weight

kg

1090/1210/1230/1250/1415/1460/1500

1040/1160/1170/1200/1375/1410/1450

Axle loading, laden front/rear

kg

1430/1280

1408/1250

Axle loading, unladen front/rear

kg

860/350

827/333

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x70

Tyre size, rear



Φ80x84

Additional wheels (dimensions)



Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

Tread, front

b10(mm)

520

Tread, rear

b11(mm)

1040/1430

Height mast lowered

h1(mm)

1805/2055/2205/2305/2120/2280/2480

Free lift

h2(mm)

1300/1550/1700/1800/1570/1740/1940

Max. lift height

h3(mm)

2500/3000/3300/3500/4500/5000/5600

Height mast extended

h4(mm)

3025/3525/3825/4025/5080/5560/6160

Height drawbar in driving position min./max.

h14(mm)

670/1300

Height of wheel arms

h8(mm)

86

Height lowered

h13(mm)

70

Overall length

l1(mm)

1980(2060)

Length to face of forks

l2(mm)

915

Overall width

b1/b2(mm)

1170/1560

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/1070(1150)

Fork spread

b5(mm)

200-800

Ground clearance, centre of wheelbase

m2(mm)

35

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2480

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2465

Turning radius

Wa(mm)

1610

Travel speed, laden/unladen

km/h

5.8/6.0

Lift speed, laden/unladen

m/s

0-0.16/0-0.24

0.11/0.16

Lowering speed, laden/unladen

m/s

0-0.39/0-0.26

0.14/0.19

Max. gradeability, laden/unladen

%

8/15

8/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.5(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

3.2

3

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/300

24/240

Battery weight

kg

260

220

Sound pressure level at the driver's seat

dB(A)

70

70



Manufacturers type designition



CTDR15-III

CTDR15-III

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

795

779

Wheelbase

y(mm)

1460

1539

Service weight

kg

940/960/980/1005

1315/1350/1390

Axle loading, laden front/rear

kg

1340/1120

1506/1344

Axle loading, unladen front/rear

kg

734/226

963/387

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ250x70

Φ250x70

Tyre size, rear



Φ98x82

Φ98x82

Additional wheels (dimensions)



Φ150x60

Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/2

1x+1/2

Tread, front

b10(mm)

520

520

Tread, rear

b11(mm)

1066/1466

1066/1466

Height mast lowered

h1(mm)

2145/1895/2145/2295

2120/2280/2480

Free lift

h2(mm)

N/A

1570/1740/1940

Max. lift height

h3(mm)

1600/2500/3000/3300

4500/5000/5600

Height mast extended

h4(mm)

2145/3145/3645/3945

5060/5560/6160

Height drawbar in driving position min./max.

h14(mm)

670/1300

670/1300

Height of wheel arms

h8(mm)

125

125

Height lowered

h13(mm)

70

70

Overall length

l1(mm)

2015(2095)

2020(2100)

Length to face of forks

l2(mm)

970

950

Overall width

b1/b2(mm)

1182/1582

1182/1582

Fork dimensions DIN ISO 2331

s/e/l(mm)

35/100/1070(1150)

35/100/1070(1150)

Fork spread

b5(mm)

200-800

200-800

Ground clearance, centre of wheelbase

m2(mm)

35

35

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2530

2569

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2500

2475

Turning radius

Wa(mm)

1655

1730

Travel speed, laden/unladen

km/h

5.8/6.0

5.8/6.0

Lift speed, laden/unladen

m/s

0.09/0.16

0.09/0.16

Lowering speed, laden/unladen

m/s

0.15/0.16

0.15/0.16

Max. gradeability, laden/unladen

%

6/15

6/15

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/200

24/200

Battery weight

kg

160

160

Sound pressure level at the driver's seat

dB(A)

70

70
