  • Electric Walkie Stacker CDDR10/CDDR12/CDDR15
  • Electric Walkie Stacker CDDR10/CDDR12/CDDR15
  • Electric Walkie Stacker CDDR10/CDDR12/CDDR15
  • Electric Walkie Stacker CDDR10/CDDR12/CDDR15
Model

CDDR10/CDDR12/CDDR15

Electric Walkie Stacker

Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.
  • Electric Walkie Stacker CDDR10/CDDR12/CDDR15
  • Electric Walkie Stacker CDDR10/CDDR12/CDDR15
  • Electric Walkie Stacker CDDR10/CDDR12/CDDR15
  • Electric Walkie Stacker CDDR10/CDDR12/CDDR15

Advantage:

 CDDR15-I/CDDR15-II

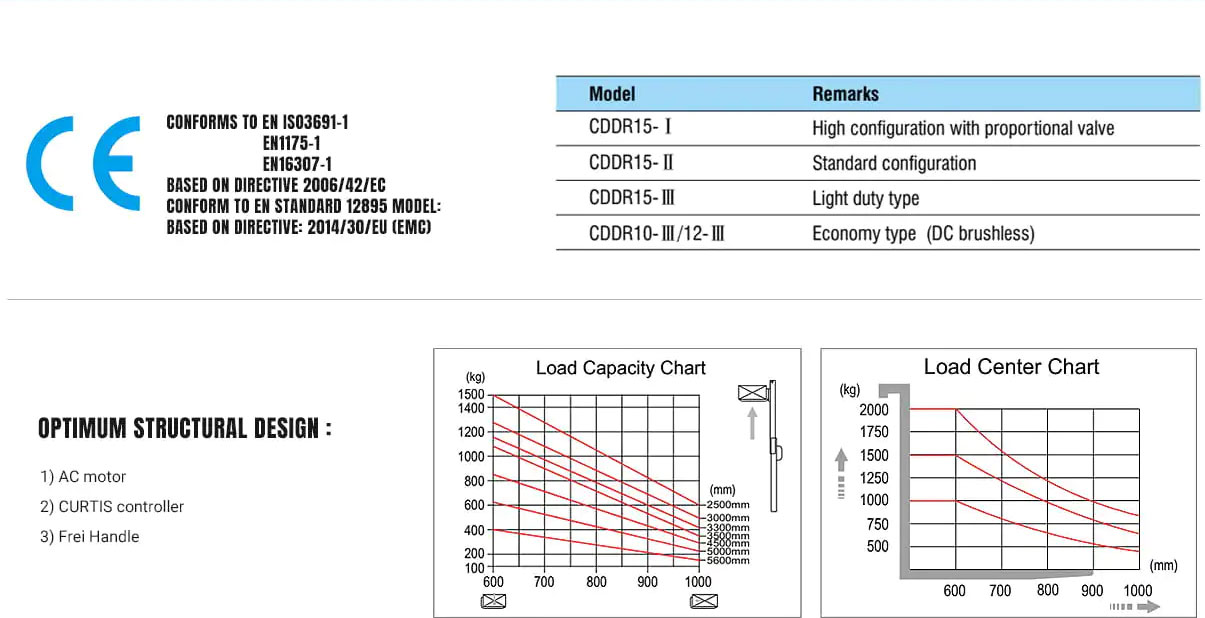

STRUCTURAL AND SAFETY:
● Advanced AC control system Intelligentized regenerative brake system.
● Multi-function display with BDI and hour meter etc.
● Emergency reversing device.
● Auto deceleration system utilizes regenerative braking.
● Built-in pressure relief valve protects the trucks from overloads.
● Emergency power disconnect .
● Stepless speed control.
● With lifting limit switch to shut off pump motor at the max. lifting height.
● Vertical drive motor has a small turning radius. The motor structure is water-proof and dust-proof.
OPTIMUM STRUCTURAL DESIGN:
● Low barycenter ensures the stable operation.
● Vertical driving wheel ensures convenient maintenance and small turning radius. Water-proof and dust-proof motor structure, keeps the braking and motor more durable and reliable.
● The mast and the frame are dividable and exchangeable.
● Full free lifting, fit for low roof house. (3M lift height truck can enter into a 2M door)
SERVICEABILITY:
● CANbus technology reduces wiring complexity and increase reliability.
● Advanced AC control system with brushless motor.
● Auto deceleration system utilises regenerative braking.
● Side-way battery with roll-out system is very convenient for replacement.

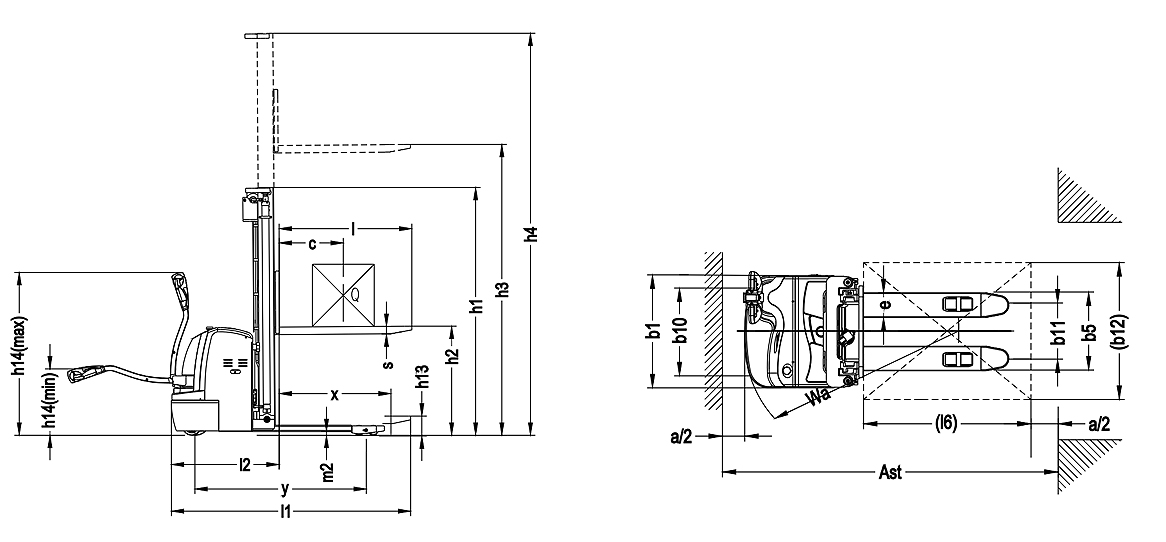

DIMENSION Drawing:

Model   CDDR10-III CDDR12-III
Load capacity Q(kg) 1000 1200
Load centre distance c(mm) 500 500
Load distance, centre of drive axle to fork x(mm) 697 697
Fork height, lowered h13(mm) 90 90
Tyre size, front mm φ250x70 φ250x70
Tyre size, rear mm φ80×70 φ80×70
Additional wheels(dimensions) mm φ150x60 φ150x60
Wheels, number front rear(x=driven wheels)   1x+1/4 1x+1/4
Height, mast lowered h1(mm) 2087/1837/2087/2237
Free lift (option 2500~ 3500mm) h2(mm) ~
Max. lit height h3(mm) 1600/2500/3000/3300
Heigt,mast extended h4(mm) 2087/3087/3587/3887
Height of tiller in drive position min./max. h14(mm) 670/1300 670/1300
Overall length l1(mm) 1965 1965
Length to face of forks l2(mm) 792 792
Overall width b1(mm) 820 820
Fork dimensions s/e/l(mm) 60/170/1070(1150) 60/170/1070(1150)
Width overall forks b5(mm) 570/695 570/695
Aisle width for pallets 800x1200 lengthways Ast(mm) 2370 2370
Turning radius wa(mm) 1525 1525
Travel speed, laden/unladen Km/h 5.3/5.6 5.3/5.6
Lift speed, laden/unladen m/s 0.11/0.17 0.10/0.16
Lowering speed, laden/unladen m/s 0.15/0.16 0.15/0.16
Battery voltage,nominal capacity K5(Duplex Mast) V/Ah 24/120 24/120
Battery weight kg 90 90
Battery dimensions l/w/h mm 753x178x240 753x178x240
Service weight(with battery) kg 730/750/770/795 750/770/790/815

Manufacturer's type designition



CDDR15-I

CDDR15-II

Drive: electric (battery type, mains,…diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

697

697

Wheelbase

y(mm)

1383

1383

Service weight

kg

1735/1985/2135/2235/2050/2210/2410

1140/1190/1200/1290/1370/1400/1530

Axle loading, laden front/rear

kg

1430/1270

1400/1250

Axle loading, unladen front/rear

kg

843/356

820/330

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x70

Tyre size, rear



Φ80x84

Additional wheels (dimensions)



Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

Tread, front

b10(mm)

520

Tread, rear

b11(mm)

405/530

Height mast lowered

h1(mm)

1735/1985/2135/2235/2050/2210/2410

Free lift

h2(mm)

1300/1550/1700/1800/1570/1740/1940

Max. lift height

h3(mm)

2500/3000/3300/3500/4500/5000/5600

Height mast extended

h4(mm)

2955/3455/3755/3955/5030/5510/6110

Height drawbar in driving position min./max.

h14(mm)

670/1300

Height of wheel arms

h8(mm)

81

Height lowered

h13(mm)

90

Overall length

l1(mm)

1948(2028)

Length to face of forts

l2(mm)

878

Overall width

b1/b2(mm)

820

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/180/1070(1150)

Fork spread

b5(mm)

570/695

Ground clearance, centre of wheelbase

m2(mm)

31

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2450

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2420

Turning radius

Wa(mm)

1575

Travel speed, laden/unladen

km/h

5.8/6.0

Lift speed, laden/unladen

m/s

0-0.16/0-0.24

0.11/0.16

Lowering speed, laden/unladen

m/s

0-0.39/0-0.26

0.14/0.19

Max. gradeability. laden/unladen

%

8/15

8/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.5(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

3.2

3

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

24/300

24/240

Battery weight

kg

260

220

Sound pressure level at the driver's seat

dB(A)

70

70



Manufacturer's type designition



CDDR15-III

CDDR15-III

Drive: electric (battery type, mains,…diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

697

770

Wheelbase

y(mm)

1410

1383

Service weight

kg

760/810/835/860

1185/1205/1225

Axle loading, laden front/rear

kg

1280/1070

1280/1070

Axle loading, unladen front/rear

kg

650/200

650/200

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ250x70

Φ250x70

Tyre size, rear



Φ80x70

Φ80x70

Additional wheels (dimensions)



Φ150x60

Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

1x+1/4

Tread, front

b10(mm)

520

520

Tread, rear

b11(mm)

400/525

400/525

Height mast lowered

h1(mm)

2087/1837/2087/2237

2054/2214/2414

Free lift

h2(mm)

N/A

1570/1740/1940

Max. lift height

h3(mm)

160IV2500/3000/3300

4500/5000/5600

Height mast extended

h4(mm)

2087/3087/3587/3887

5030/5510/6110

Height drawbar in driving position min./max.

h14(mm)

670/1300

670/1300

Height of wheel arms

h8(mm)

81

81

Height lowered

h13(mm)

90

90

Overall length

l1(mm)

1948(2028)

1975(2055)

Length to face of forts

l2(mm)

878

905

Overall width

b1/b2(mm)

820

820

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/170/1070(1150)

6(V170/1070(1150)

Fork spread

b5(mm)

570/695

570/695

Ground clearance, centre of wheelbase

m2(mm)

26

26

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2480

2480

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2450

2450

Turning radius

Wa(mm)

1605

1575

Travel speed, laden/unladen

km/h

5.8/6.0

5.8/6.0

Lift speed, laden/unladen

m/s

0.09/0.16

0.09/0.16

Lowering speed, laden/unladen

m/s

0.15/0.16

0.15/0.16

Max. gradeability. laden/unladen

%

6/15

6/15

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

24/200

24/200

Battery weight

kg

160

160

Sound pressure level at the driver's seat

dB(A)

70

70
*Option: Lithium battery 125AH (Charger 24V/50A)
