CTDK15-I/CTDK15-II

SAFETY AND PRODUCTIVITY

● AC Motor eliminates replacement of carbon brush.

● Multi-function display with BDI and hour meter.

● Side way battery is easy to maintain.

● Damping cushion for low-noise operation;

● Emergency reversing device in the handle provides higher safety for the whole operation.

● Auto deceleration function makes operation more safely.

● Built-in pressure relief valve protects the trucks from overloads, increases the reliability.

● Braking applied with handle upright and horizontal position, increasing the safety of the truck.

● Emergency power disconnect switch.

● Turtle low speed switch.

● Stepless speed control.

OPTIMUM STRUCTURAL DESIGN：

● Low center of gravity ensures the stable operation.

● Vertical driving wheel ensures convenient maintenance and small turning radius. Water- proof and dust-proof motor structure, keeps the braking and motor more durable and reliable.

● The mast and the frame are dividable and exchangeable.

Model		CTDK10-III	CTDK12-III
Load capacity/rated load	Q(kg)	1000	1200
Load centre distance	c(mm)	600	600
Load distance,centre of drive axle to fork	x(mm)	795	795
Fork height, lowered	h13(mm)	70	70
Tyre size, front	mm	φ250×70	φ250×70
Tyre size rear	mm	φ98×82	φ98×82
Additional wheels(dimensions)	mm	φ150×60	φ150×60
Wheels,number front rear(x=driven wheels)		1x+2/4	1x+2/4
Height,mast lowered	h1(mm)	2145/1895/2145/2295	2145/1895/2145/2295
Free lift (option 2500~3500mm)	h2(mm)	~	~
Max. lift height	h3(mm)	1600/2500/3000/3300	1600/2500/3000/3300
Height,mast extended	h4(mm)	2145/3145/3645/3995	2145/3145/3645/3995
Height of tiller in drive position min./max.	h14(mm)	1150/1450	1150/1450
Overall length	l1(mm)	1975	1975
Length to face of forks	l2(mm)	890	890
Overall width	b1(mm)	1182-1582	1182-1582
Fork dimensions	s/e/l(mm)	35/100/1070(1150)	35/100/1070(1150)
Width overall forks	b5(mm)	200-800	200-800
Aisle width for pallets 800x1200 lengthways	Ast(mm)	2490	2490
Turning radius	wa(mm)	1625	1625
Travel speed,laden/unladen	Km/h	7/7.1(AC)	7/7.1(AC)
Lift speed,laden/unladen	m/s	0.11/0.17	0.10/0.16
Lowering speed,laden/unladen	m/s	0.15/0.16	0.15/0.16
Battery voltage,nominal capacity K5	V/Ah	24/120	24/120
Battery weight	kg	90	90
Battery dimensions l/w/h	mm	753x178x240	753x178x240
Service weight (with battery)	kg	650/700/730/750	660/710/740/760

Manufacturer's type designition		CTDK15-I
Drive: electric (battery type, mains,…)，diesel, petrol, fuel gas		Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Standing
Rated capacity/rated load	Q(kg)	1500
Load centre distance	c(mm)	600
Load distance, centre of drive axle to fork	x(mm)	677
Wheelbase	y(mm)	1415
Service weight	kg	1260/1285/1300/1310/1360/1380/1400
Axle loading, laden front/rear	kg	1830/1180
Axle loading, unladen front/rear	kg	1040/470
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane
Tyre size, front		Φ250x70
Tyre size, rear		Φ80x84
Additional wheels (dimensions)		Φ150x60
Wheels, number front/rear (x = driven wheels)		1x+1/4
Tread, front	b10(mm)	580
Tread, rear	b11(mm)	1040/1430
Height mast lowered	h1(mm)	1805/2055/2205/2305/2120/2280/2480
Free lift	h2(mm)	1300/1550/1700/1800/1570/1740/1940
Max. lift height	h3(mm)	2500/3000/3300/3500/4500/5000/5600
Height mast extended	h4(mm)	3025/3525/3825/4025/5080/5560/6160
Height drawbar in driving position min./max.	h14(mm)	1150/1450
Height of wheel arms	h8(mm)	86
Height lowered	h13(mm)	70
Overall length	l1(mm)	2020(2100)
Length to face of forks	l2(mm)	962
Overall width	b1/b2(mm)	1170/1560
Fork dimensions DIN ISO 2331	s/e/l(mm)	35/100/1070(1150)
Fork spread	b5(mm)	200-800
Ground clearance, centre of wheelbase	m2(mm)	35
Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	2565
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	2545
Turning radius	Wa(mm)	1695
Travel speed, laden/unladen	km/h	7.0/7.1
Lift speed, laden/unladen	m/s	0-0.16/0-0.24
Lowering speed, laden/unladen	m/s	0-0.39/0-0.26
Max. gradeability. laden/unladen	%	8/15
Service brake		Electromagnetic
Drive motor rating S2 60 min	kW	1.5(AC)
Lift motor rating at S3 15%	kW	3
Battery voltage/nominal capacity K5	(V)/(Ah)or kWh	24/300
Battery weight	kg	260
Sound pressure level at the driver's seat	dB(A)	70

Manufacturer's type designition		CTDK15-II
Drive: electric (battery type, mains,…)，diesel, petrol, fuel gas		Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Standing
Rated capacity/rated load	Q(kg)	1500
Load centre distance	c(mm)	600
Load distance, centre of drive axle to fork	x(mm)	677
Wheelbase	y(mm)	1415
Service weight	kg	1260/1285/1300/1310	1360/1380/1400
Axle loading, laden front/rear	kg	1830/1180
Axle loading, unladen front/rear	kg	1040/470
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane
Tyre size, front		Φ250x70
Tyre size, rear		Φ80x84
Additional wheels (dimensions)		Φ150x60
Wheels, number front/rear (x = driven wheels)		1x+1/4
Tread, front	b10(mm)	580
Tread, rear	b11(mm)	1040/1430
Height mast lowered	h1(mm)	1805/2055/2205/2305	2120/2280/2480
Free lift	h2(mm)	1300/1550/1700/1800	1570/1740/1940
Max. lift height	h3(mm)	2500/3000/3300/3500	4500/5000/5600
Height mast extended	h4(mm)	3025/3525/3825/4025	5080/5560/6160
Height drawbar in driving position min./max.	h14(mm)	1150/1450
Height of wheel arms	h8(mm)	86
Height lowered	h13(mm)	70
Overall length	l1(mm)	2020(2100)
Length to face of forks	l2(mm)	962
Overall width	b1/b2(mm)	1170/1560
Fork dimensions DIN ISO 2331	s/e/l(mm)	35/100/1070(1150)
Fork spread	b5(mm)	200-800
Ground clearance, centre of wheelbase	m2(mm)	35
Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	2565
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	2545
Turning radius	Wa(mm)	1695
Travel speed, laden/unladen	km/h	7.0/7.1
Lift speed, laden/unladen	m/s	0-0.16/0-0.24
Lowering speed, laden/unladen	m/s	0-0.39/0-0.26
Max. gradeability. laden/unladen	%	8/15
Service brake		Electromagnetic
Drive motor rating S2 60 min	kW	1.5(AC)
Lift motor rating at S3 15%	kW	3
Battery voltage/nominal capacity K5	(V)/(Ah)or kWh	24/240	24/300
Battery weight	kg	220	260
Sound pressure level at the driver's seat	dB(A)	70

Manufacturer's type designition		CTDK15-III	CTDK15-III
Drive: electric (battery type, mains,…)，diesel, petrol, fuel gas		Electric	Electric
Operator type: hand, pedestrian, standing, seated, order-picker		Standing	Standing
Rated capacity/rated load	Q(kg)	1500	1500
Load centre distance	c(mm)	600	600
Load distance, centre of drive axle to fork	x(mm)	795	795
Wheelbase	y(mm)	1460	1460
Service weight	kg	940/960/980/1005
Axle loading, laden front/rear	kg	1340/1120	1340/1120
Axle loading, unladen front/rear	kg	734/226	734/226
Tyres: solid rubber, super elastic, pneumatic, polyurethane		Polyurethane	Polyurethane
Tyre size, front		Φ250x70	Φ250x70
Tyre size, rear		Φ98x82	Φ98x82
Additional wheels (dimensions)		Φ150x60	Φ150x60
Wheels, number front/rear (x = driven wheels)		1x+2/2	1x+2/2
Tread, front	b10(mm)	586	586
Tread, rear	b11(mm)	410/525	410/525
Height mast lowered	h1(mm)	2145/1895/2145/2295/2395	2120/2280/2480
Free lift	h2(mm)	N/A	1570/1740/1940
Max. lift height	h3(mm)	1600/2500/3000/3300/3500	4500/5000/5600
Height mast extended	h4(mm)	2145/3145/3645/3995/4145	5060/5560/6160
Height drawbar in driving position min./max.	h14(mm)	670/1300	670/1300
Height of wheel arms	h8(mm)	125	125
Height lowered	h13(mm)	70	70
Overall length	l1(mm)	2055(2135)	2055(2135)
Length to face of forks	l2(mm)	970	970
Overall width	b1/b2(mm)	1182/1582	1182/1582
Fork dimensions DIN ISO 2331	s/e/l(mm)	35/100/1070(1150)	35/100/1070(1150)
Fork spread	b5(mm)	200-800	200-800
Ground clearance, centre of wheelbase	m2(mm)	65	65
Aisle width for pallets 1000 x 1200 crossways	Ast(mm)	2670	2670
Aisle width for pallets 800 x 1200 lengthways	Ast(mm)	2585	2585
Turning radius	Wa(mm)	1850	1850
Travel speed, laden/unladen	km/h	6.5/6.7	6.5/6.7
Lift speed, laden/unladen	m/s	0.09/0.16	0.09/0.16
Lowering speed, laden/unladen	m/s	0.15/0.16	0.15/0.16
Max. gradeability. laden/unladen	%	6/15	6/15
Service brake		Electromagnetic	Electromagnetic
Drive motor rating S2 60 min	kW	1.5(AC)	1.5(AC)
Lift motor rating at S3 15%	kW	2.2	2.2
Battery voltage/nominal capacity K5	(V)/(Ah)or kWh	24/200	24/200
Battery weight	kg	160	160
Sound pressure level at the driver's seat	dB(A)	70	70

*Option: With EPS the drive wheel size is 250x80mm

Model	Remarks
CTDK15-Ⅰ	High configuration with proportional valve
CTDK15-Ⅱ	Standard configuration
CTDK15-Ⅲ	Light duty type
CTDK10-Ⅲ/12-Ⅲ	Economy type (DC brushless)

Website menu

fasttips

Language

ESC

Electric Rider Straddle Stacker CTDK10/CTDK12/CTDK15 Suppliers

Model

CTDK10/CTDK12/CTDK15

Electric Rider Straddle Stacker

Advantage:

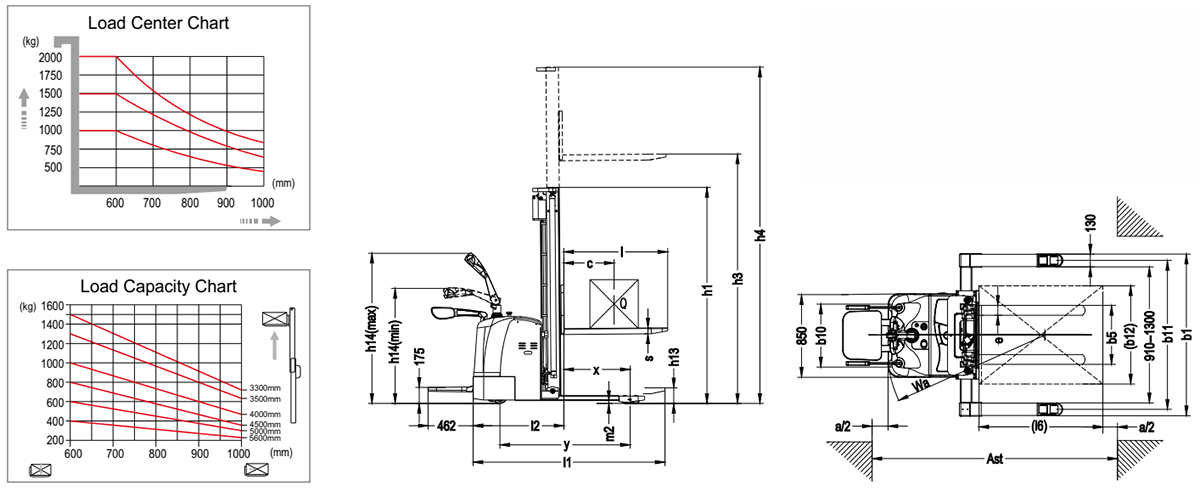

DIMENSION Drawing:
