  • Electric Rider Stacker CDDK15
  • Electric Rider Stacker CDDK15

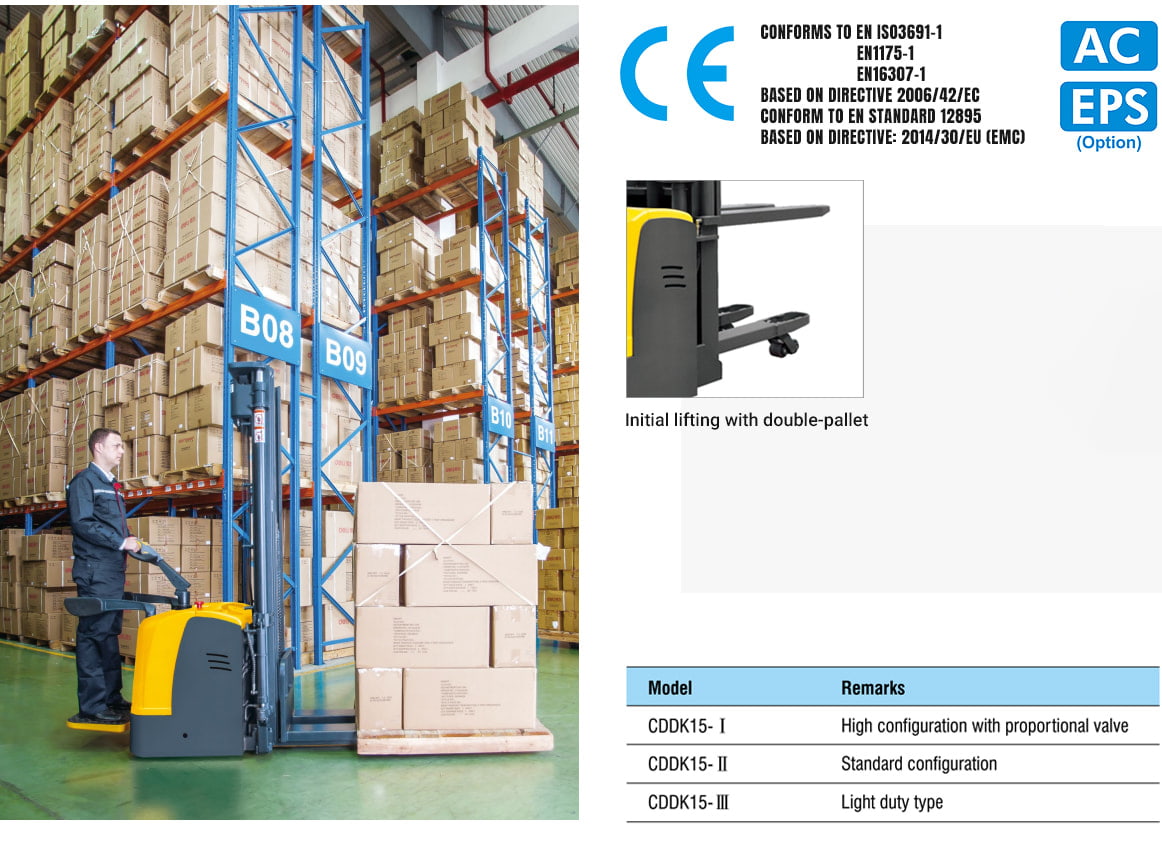

Model

CDDK15

Electric Rider Stacker

  • Electric Rider Stacker CDDK15
  • Electric Rider Stacker CDDK15

Advantage:

CDDK15-I/CDDK15-II
SAFETY AND PRODUCTIVITY:
● AC Motor eliminates carbon brush replacement.
● Multi-function display with BDl and hour meter.
● Side way battery is easy to maintain.
● Damping cushion for low-noise operation.
● Emergency reversing device equipped handle to keep safe.
● Auto deceleration function makes operation more safely.
● Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
● With brake in handle upright and horizontal position, increasing the safety of the truck.
● Emergency power disconnect switch.
● Turtle-shaped low speed switch.
● Stepless speed control.
OPTIMUM STRUCTURAL DESIGN:
● Low barycenter ensures the stable operation.
● Vertical driving wheel ensures convenient maintenance and small turning radius. Water-proof and dust-proof motor structure, keeps the braking and motor more durable and reliable.
● The mast and the frame are dividable and exchangeable.
● Full free lifting, fit for low roof house. (3M lift height truck can enter into a 2M door)
SERVICEABILITY:
● Low voltage protection setting prolongs the battery life time.
● The electronic components' concentrated design simplifies the circuit and makes easily assemble, debug and maintain.

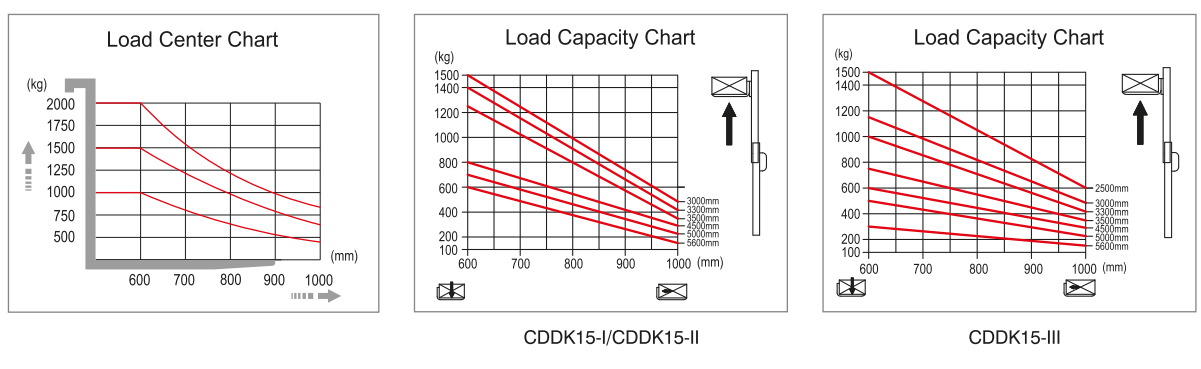

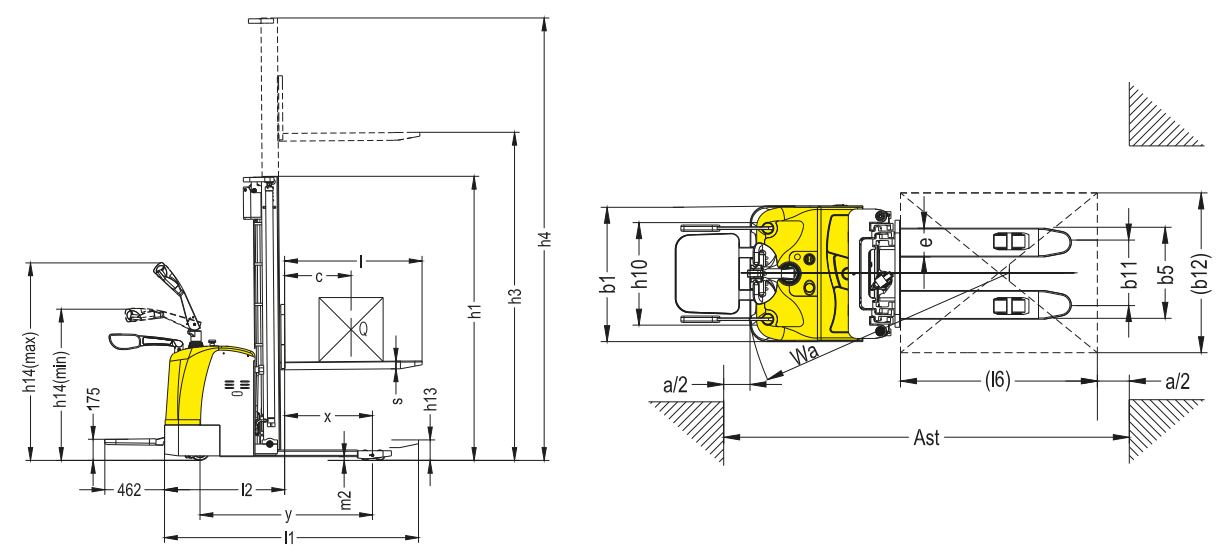

DIMENSION Drawing:

Manufacturer's type designation



CDDK15-I

CDDK15-II

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Standing

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

697

697

Wheelbase

y(mm)

1378

1378

Service weight

kg

1330/1340/1350/1370/1530/1560/1595

1140/1190/1200/1290

1370/1400/1530

Me loading, laden fronVrear

kg

1830/1140

1830/1140

Me loading, unladen front/rear

kg

1040/470

1040/470

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ250x80

Φ250x80

Tyre size, rear



Φ80x84

Φ80x84

Additional wheels (dimensions)



Φ150x60

Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

1x+1/4

Tread, front

b10(mm)

580

580

Tread, rear

b11(mm)

404/530

404/530

Height, mast lowered

h1(mm)

1735/1985/2135/2235/2050/2210/2410

1735/1985/2135/2235

2050/2210/2410

Free lift

h2(mm)

1300/1550/1700/1800/1570/1740/1940

1300/1550/1700/1800

1570/1740/1940

Max. lift height

h3(mm)

2500/3000/3300/3500/4500/5000/5600

2500/3000/3300/3500

4500/5000/5600

Height, mast extended

h4(mm)

2955/3455/3755/3955/5030/5510/6110

2955/3455/3755/3955

5030/5510/6110

Height drawbar in driving position min./max.

h14(mm)

1150/1450

Height of wheel arms

h8(mm)

81

Height, lowered

h13(mm)

90

Overall length

l1(mm)

2020(2100)

Length to face of forks

l2(mm)

950

Overall width

b1/b2(mm)

850

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/180/1070(1150)

Fork spread

b5(mm)

570/695

Ground clearance, centre of wheelbase

m2 (mm)

31

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2535

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2515

Turning radius

Wa(mm)

1655

Travel speed, laden/unladen

km/h

7.0/7.1

Lift speed, laden/unladen

m/s

0-0.16/0-0.24

0.11/0.16

Lowering speed, laden/unladen

m/s

0-0.39/0-0.26

0.14/0.19

Max. gradeability, laden/unladen

%

8/15

8/15

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.5(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

3.2

3.0

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/300

24/240

24/300

Battery weight

kg

260

220

260

Sound pressure level at the driver's seat

dB (A)

70

70



Manufacturers type designition



CDDK15-II

CDDK15-III

Drive: electric (battery type, mains,...), diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Standing

Standing

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c (mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

697

697

Wheelbase

y(mm)

1405

1405

Service weight

kg

760/810/835/860

 1200/1230/1265

Axle loading, laden front/rear

kg

1280/1070

1280/1070

Axle loading, unladen front/rear

kg

650/200

650/200

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ250x70

Φ250x70

Tyre size, rear



Φ80x70

Φ80x70

Additional wheels (dimensions)



Φ150x60

Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+2/4

1x+2/4

Tread, front

b10(mm)

586

586

Tread, rear

b11(mm)

410/525

410/525

Height mast lowered

h1(mm)

2087/1837/2087/2237/2337

2050/2210/2410

Free lift

h2(mm)

N/A

1570/1740/1940

Max. lift height

h3(mm)

1600/2500/3000/3300/3500

4500/5000/5600

Height mast extended

h4(mm)

2087/3087/3587/3887/4087

5030/5510/6110

Height drawbar in driving position min./max.

h14(mm)

1150/1450

1150/1450

Height of wheel arms

h8(mm)

81

81

Height lowered

h13(mm)

90

90

Overall length

l1(mm)

1990(2070)

1990(2070)

Length to face of forts

l2(mm)

920

920

Overall width

b1/b2(mm)

850

850

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/170/1070(1150)

60/170/1070(1150)

Fork spread

b5(mm)

570/695

570/695

Ground clearance, centre of wheelbase

m2(mm)

26

26

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2550

2550

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2520

2520

Turning radius

Wa(mm)

1655

1655

Travel speed, laden/unladen

km/h

6.5/6.7

6.5/6.7

Lift speed, laden/unladen

m/s

0.09/0.16

0.09/0.16

Lowering speed, laden/unladen

m/s

0.15/0.16

0.15/0.16

Max. gradeability. laden/unladen

%

6/15

6/15

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah) or kWh

24/200

24/200(24/240)

Battery weight

kg

160

160(220)

Sound pressure level at the driver's seat

dB(A)

70

70
*The weight shown is for 240AH battery.
*Option: With EPS the drive wheel size is 250x80mm
Lithium battery 225AH (Charger 24V/230AH)
