  • Electric Walkie Stacker CDDR15
  • Electric Walkie Stacker CDDR15
  • Electric Walkie Stacker CDDR15
  • Electric Walkie Stacker CDDR15
Model

CDDR15

Electric Walkie Stacker

Walkie type electric stacker provides a cost effective solution for applications involving medium lifting storage and short distance pallets transportation.
  • Electric Walkie Stacker CDDR15
  • Electric Walkie Stacker CDDR15
  • Electric Walkie Stacker CDDR15
  • Electric Walkie Stacker CDDR15

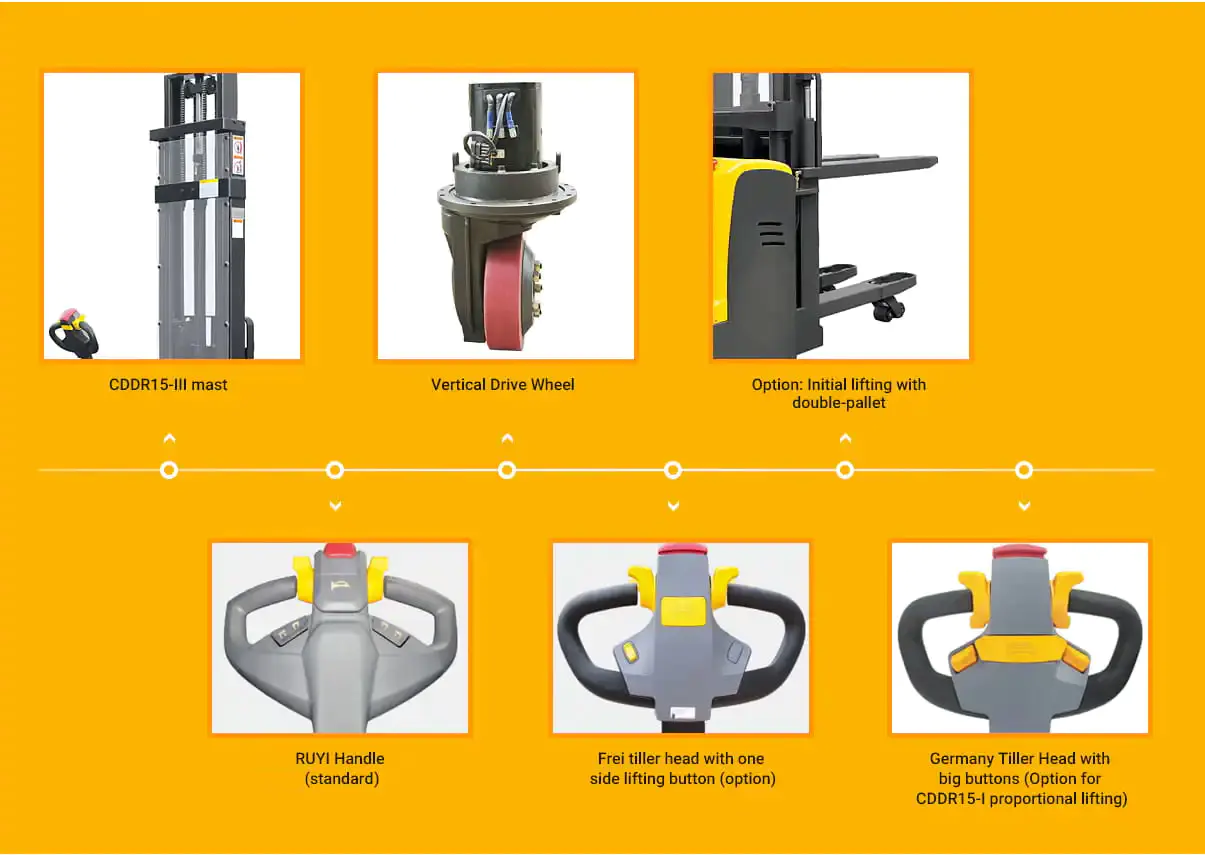

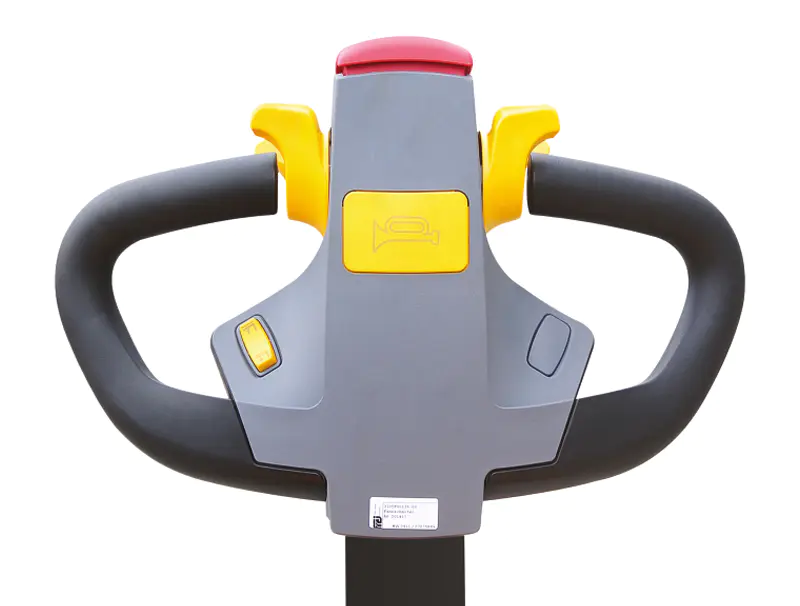

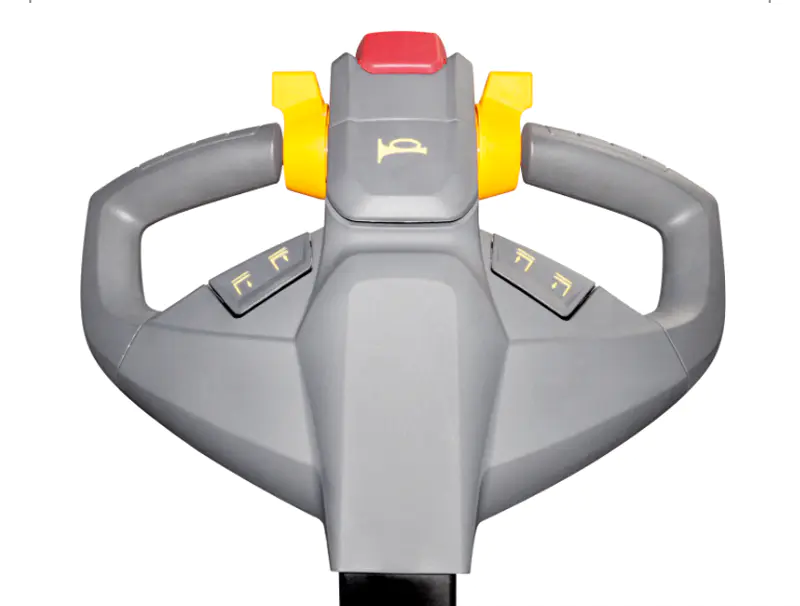

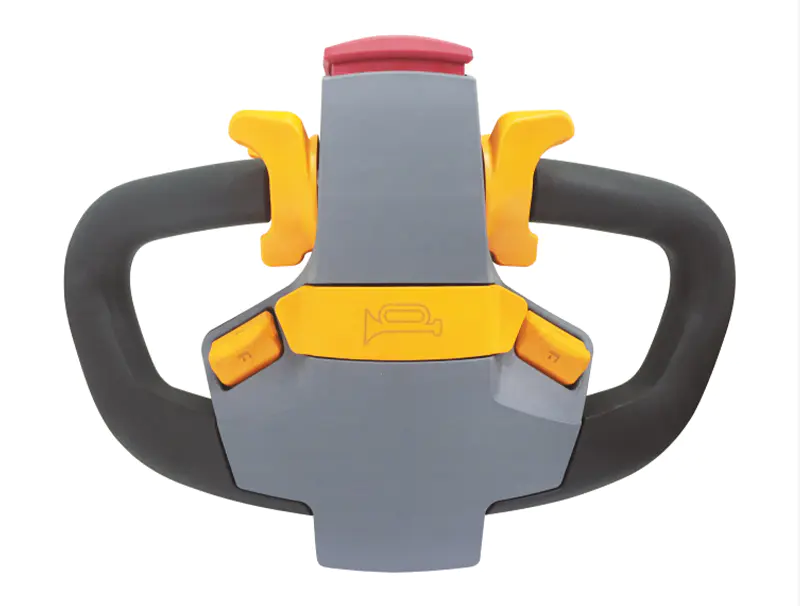

Advantage:

 CDDR15-I/CDDR15-II

STRUCTURAL AND SAFETY:
● Advanced AC control system Intelligentized regenerative brake system.
● Multi-function display with BDl and hour meter etc.
● Emergency reversing device.
● Auto deceleration system utilizes regenerative braking.
● Built-in pressure relief valve protects the trucks from overloads.
● Emergency power disconnect.
● Stepless speed control.
● With lifting limit switch to shut off pump motor at the max. lifting height.
● Vertical drive motor has a small turning radius. The motor structure is water-proof and dust-proof.
OPTIMUM STRUCTURAL DESIGN:
● Low barycenter ensures the stable operation.
● Vertical driving wheel ensures convenient maintenance and smal turning radius. Water-proof and dust-proof motor structure, keeps the braking and motor more durable and reliable.
● The mast and the frame are dividable and exchangeable.
● Full free lifting, fit for low roof house. (3M lift height truck can enter into a 2M door)
SERVICEABILITY:
● CANbus technology reduces wiring complexity and increase reliability.
● Advanced AC control system with brushless motor.
● Auto deceleration system utilises regenerative braking.
● Side-way battery with roll-out system is very convenient for replacement.

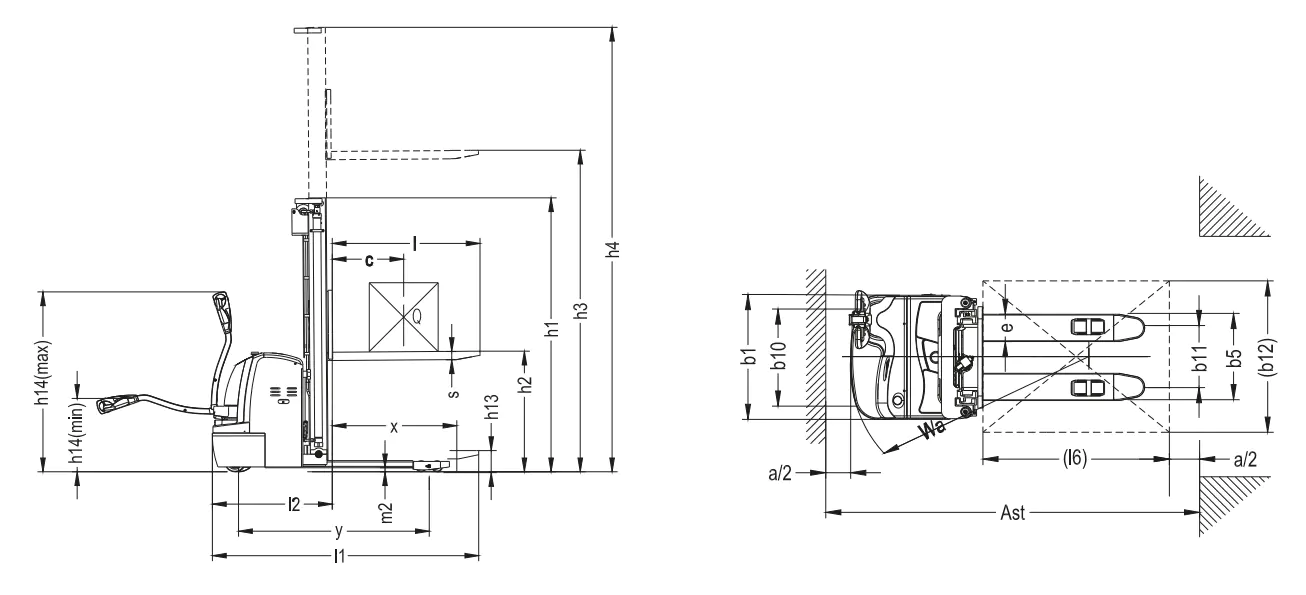

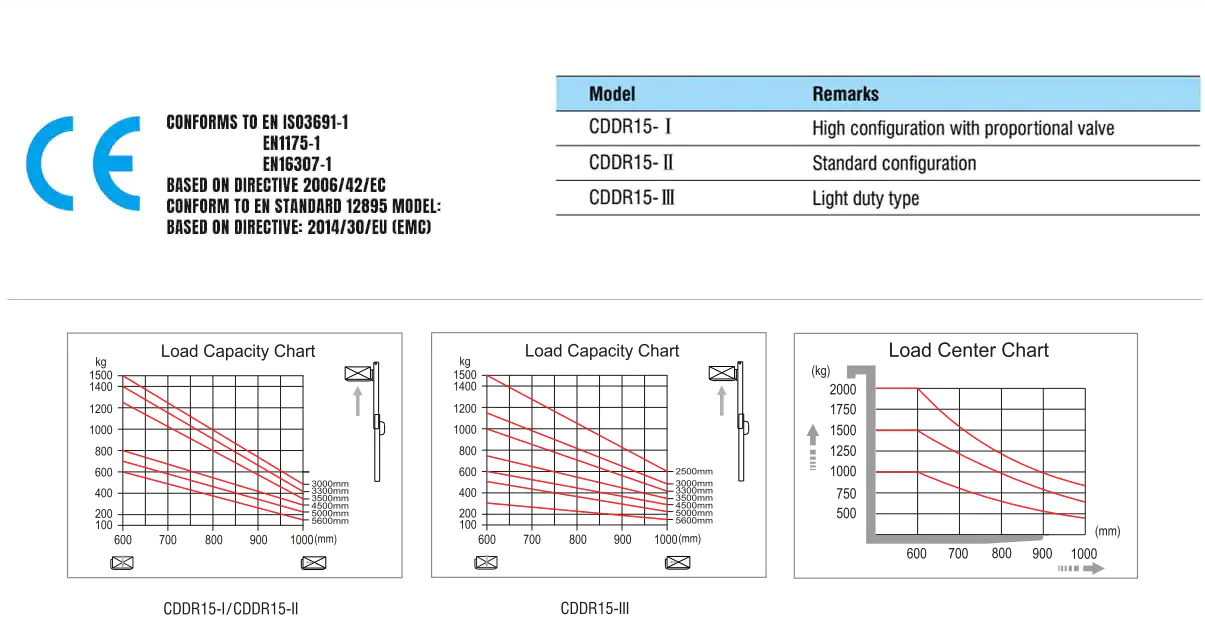

DIMENSION Drawing:

Manufacturer's type designation



CDDR15-I

CDDR15-II

Drive: electric (battery type, mains,…diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

697

697

Wheelbase

y(mm)

1383

1383

Service weight

kg

1190/1240/1250/1340/1420/1450/1580

1140/1190/1200/1290/1370/1400/1530

Axle loading, laden front/rear

kg

1430/1270

1400/1250

Axle loading, unladen front/rear

kg

843/356

820/330

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Tyre size, front



Φ250x70

Tyre size, rear



Φ80x84

Additional wheels (dimensions)



Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

Tread, front

b10(mm)

520

Tread, rear

b11(mm)

405/530

Height mast lowered

h1(mm)

1735/1985/2135/2235/2050/2210/2410

Free lift

h2(mm)

1300/1550/1700/1800/1570/1740/1940

Max. lift height

h3(mm)

2500/3000/3300/3500/4500/5000/5600

Height mast extended

h4(mm)

2955/3455/3755/3955/5030/5510/6110

Height drawbar in driving position min./max.

h14(mm)

670/1300

Height of wheel arms

h8(mm)

81

Height lowered

h13(mm)

90

Overall length

l1(mm)

1948(2028)

Length to face of forts

l2(mm)

878

Overall width

b1/b2(mm)

820

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/180/1070(1150)

Fork spread

b5(mm)

570/695

Ground clearance, centre of wheelbase

m2(mm)

31

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2450

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2420

Turning radius

Wa(mm)

1575

Travel speed, laden/unladen

km/h

5.8/6.0

Lift speed, laden/unladen

m/s

0-0.16/0-0.24

0.11/0.16

Lowering speed, laden/unladen

m/s

0-0.39/0-0.26

0.14/0.19

Max. gradeability. laden/unladen

%

8/15

8/15

Service brake



Electromagnetic

Drive motor rating S2 60 min

kW

1.5(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

3.2

3

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

24/300

24/240

Battery weight

kg

260

220

Sound pressure level at the driver's seat

dB(A)

70

70



Manufacturer's type designation



CDDR15-III

CDDR15-III

Drive: electric (battery type, mains,…diesel, petrol, fuel gas



Electric

Electric

Operator type: hand, pedestrian, standing, seated, order-picker



Pedestrian

Pedestrian

Rated capacity/rated load

Q(kg)

1500

1500

Load centre distance

c(mm)

600

600

Load distance, centre of drive axle to fork

x(mm)

697

770

Wheelbase

y(mm)

1410

1383

Service weight

kg

760/810/835/860

1185/1205/1225

Axle loading, laden front/rear

kg

1280/1070

1280/1070

Axle loading, unladen front/rear

kg

650/200

650/200

Tyres: solid rubber, super elastic, pneumatic, polyurethane



Polyurethane

Polyurethane

Tyre size, front



Φ250x70

Φ250x70

Tyre size, rear



Φ80x70

Φ80x70

Additional wheels (dimensions)



Φ150x60

Φ150x60

Wheels, number front/rear (x = driven wheels)



1x+1/4

1x+1/4

Tread, front

b10(mm)

520

520

Tread, rear

b11(mm)

400/525

400/525

Height mast lowered

h1(mm)

2087/1837/2087/2237

2054/2214/2414

Free lift

h2(mm)

N/A

1570/1740/1940

Max. lift height

h3(mm)

1600/2500/3000/3300

4500/5000/5600

Height mast extended

h4(mm)

2087/3087/3587/3887

5030/5510/6110

Height drawbar in driving position min./max.

h14(mm)

670/1300

670/1300

Height of wheel arms

h8(mm)

81

81

Height lowered

h13(mm)

90

90

Overall length

l1(mm)

1948(2028)

1975(2055)

Length to face of forts

l2(mm)

878

905

Overall width

b1/b2(mm)

820

820

Fork dimensions DIN ISO 2331

s/e/l(mm)

60/170/1070(1150)

60/170/1070(1150)

Fork spread

b5(mm)

570/695

570/695

Ground clearance, centre of wheelbase

m2(mm)

26

26

Aisle width for pallets 1000 x 1200 crossways

Ast(mm)

2480

2480

Aisle width for pallets 800 x 1200 lengthways

Ast(mm)

2450

2450

Turning radius

Wa(mm)

1605

1575

Travel speed, laden/unladen

km/h

5.8/6.0

5.8/6.0

Lift speed, laden/unladen

m/s

0.09/0.16

0.09/0.16

Lowering speed, laden/unladen

m/s

0.15/0.16

0.15/0.16

Max. gradeability. laden/unladen

%

6/15

6/15

Service brake



Electromagnetic

Electromagnetic

Drive motor rating S2 60 min

kW

1.2(AC)

1.2(AC)

Lift motor rating at S3 15%

kW

2.2

2.2

Battery voltage/nominal capacity K5

(V)/(Ah)or kWh

24/200

24/200

Battery weight

kg

160

160

Sound pressure level at the driver's seat

dB(A)

70

70
*Option: Lithium battery 150AH (Charger 24V/50A)
