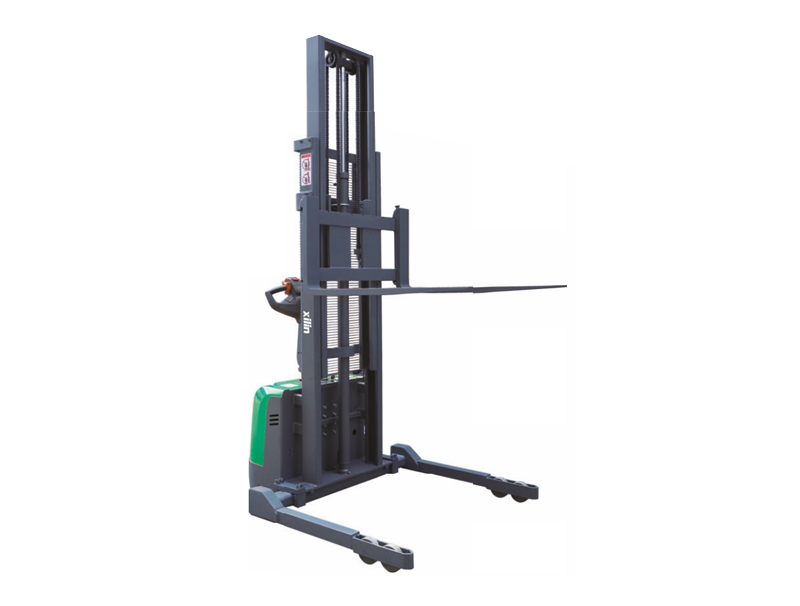

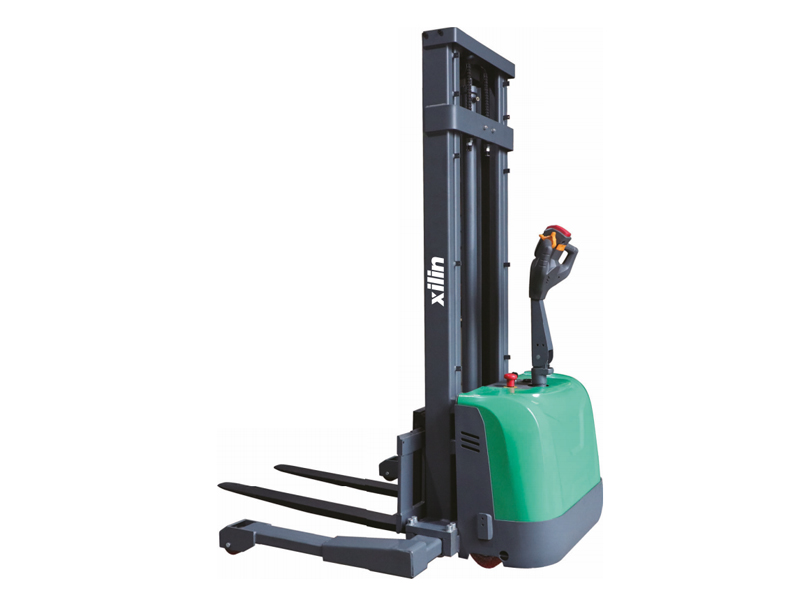

Electric Straddle Stacker

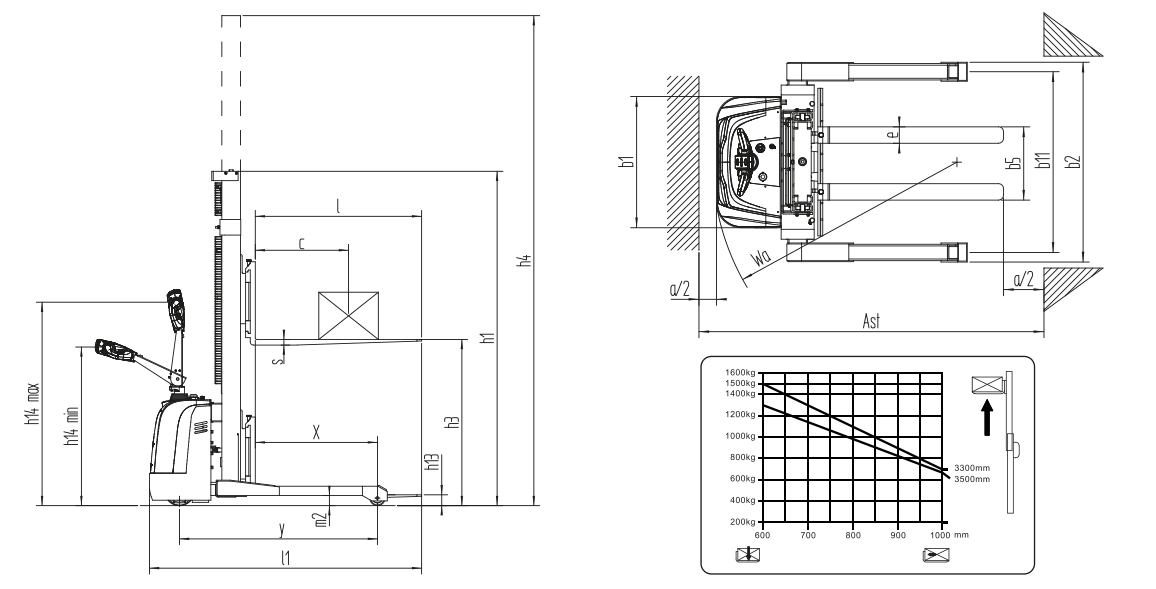

Manufacturer's type designation

CTD15R-EN

Drive: electric (battery type, mains,..), diesel, petrol, fuel gas

Electric

Operator type: hand, pedestrian, standing, seated, order-picker

Pedestrian

Rated capacity/rated load

Q  (kg)

1500

Load centre distance

c  (mm)

600

Load distance, centre of drive axle to fork

x(mm)

635

Wheelbase

y  (mm)

1123

Service weight

kg

Axle loading, laden front/rear

kg

530/1140

Axle loading, unladen front/rear

kg

485/185

Tyres: solid rubber, superelastic, pneumatic, polyurethane

PU

Tyre size.front

φ195*70

Tyre size, rear

φ98*82(option 125x50)

Additional wheels (dimensions)

φ150*60

Wheels, number front/rear(×=driven wheels)

1x/2

Tread, rear

b11(mm)

1036-1436

Height, mast lowered

h1(mm)

2145/1895/2145/2295/2395

Lift

h3 (mm)

1600/2500/3000/3300/3500

Height, mast extended

h4(mm)

2145/3145/3645/3995/4145

Height drawbar in driving position min./max.

h14  (mm)

950/1300

Height, lowered

h13(mm)

70

Overall length

l1  (mm)

1750(1830)

Length to face of forks

l2(mm)

680

Overall width

b1/b2(mm)

800/1155-1555

Fork dimensions DIN IS02331

s/e/l(mm)

35*100*1070(1150)

Fork spread

b5(mm)

200-800

Ground clearance, centre of wheelbase

m2(mm)

65

Aisle width for pallets 1000×1200 crossways

Ast  (mm)

2230

Aisle width for pallets 800×1200 lengthways

Ast(mm)

2210

Turning radius

Wa(mm)

1345

Travel speed,laden/unladen

km/h

4.5/5

Lift speed,laden/unladen

m/s

0.09/0.15

Lowering speed,laden/unladen

m/s

0.15/0.11

Gradeability,laden/unladen

%

6/15

Max.gradeability,laden/unladen

%

6/15

Service brake

Electromagnetic

Drive motor rating S260 min

kW

0.65

Lift motor rating at S315%

kW

2.2

Battery voltage/nominal capacity K₅

(V)/(Ah)

24/105(125)

Battery weight

kg

52(70)

Sound pressure level at the driver's seat

dB(A)

70
