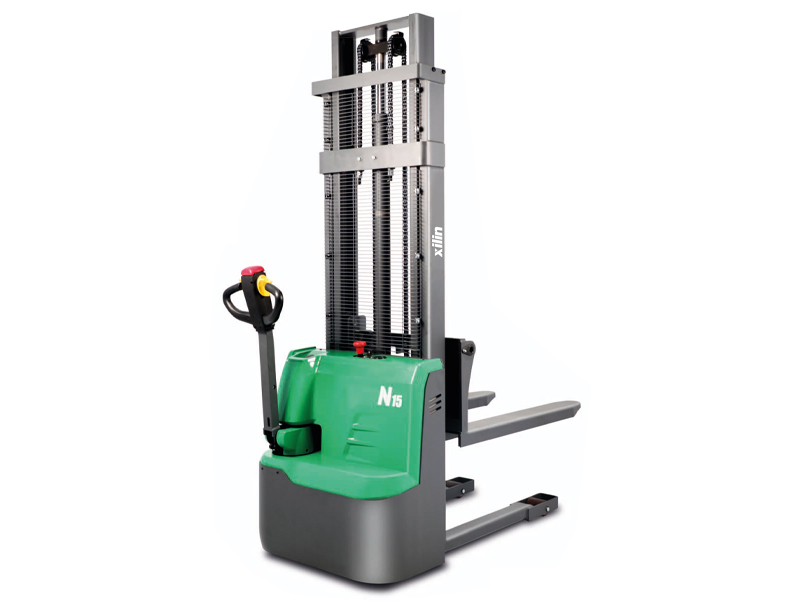

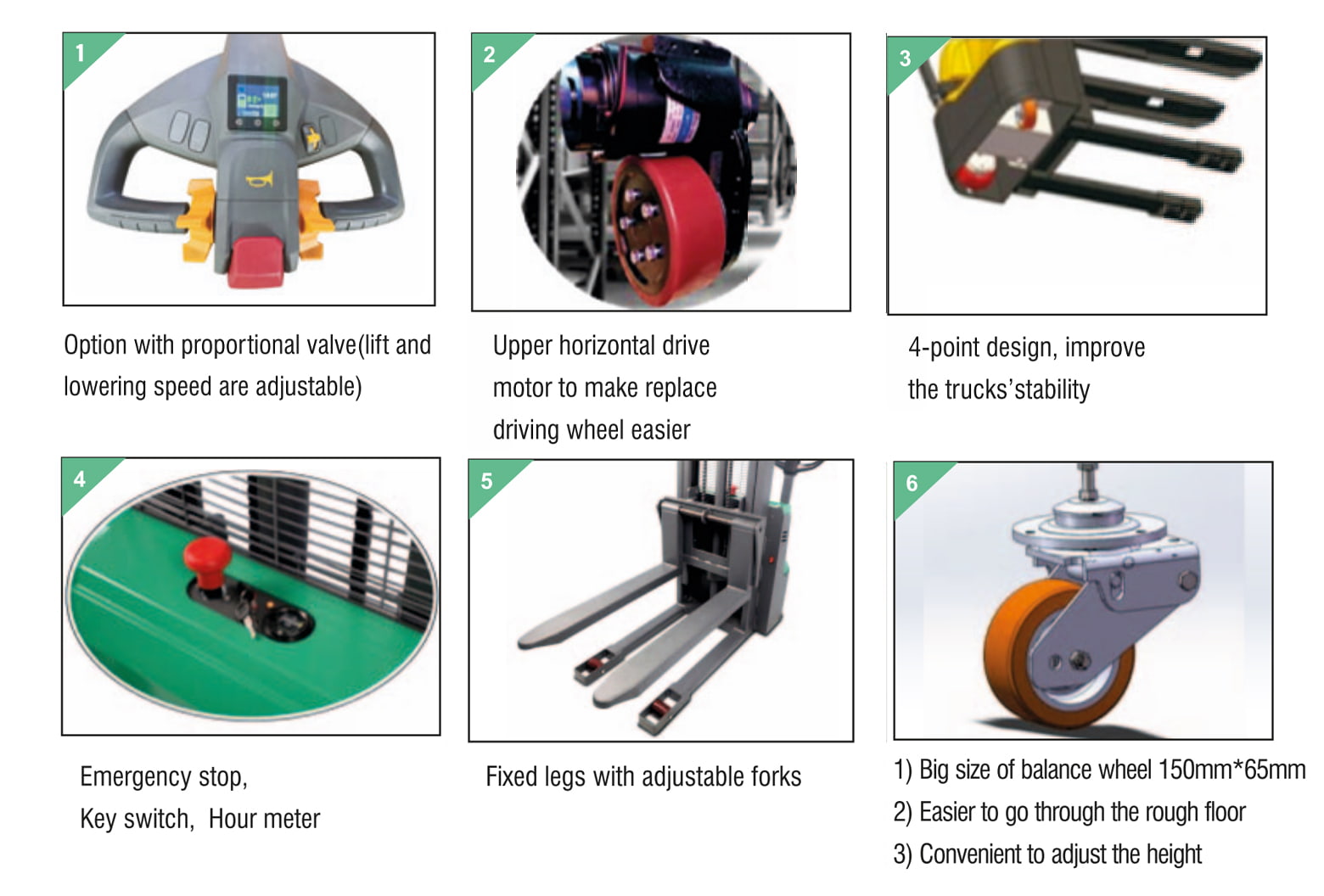

Electric Walkie Stacker

Model

CDD15R-EN

CDD15R-E/X
(Light-duty)

Drive type

Electric

Electric

Operator type

Pedestrian

Pedestrian

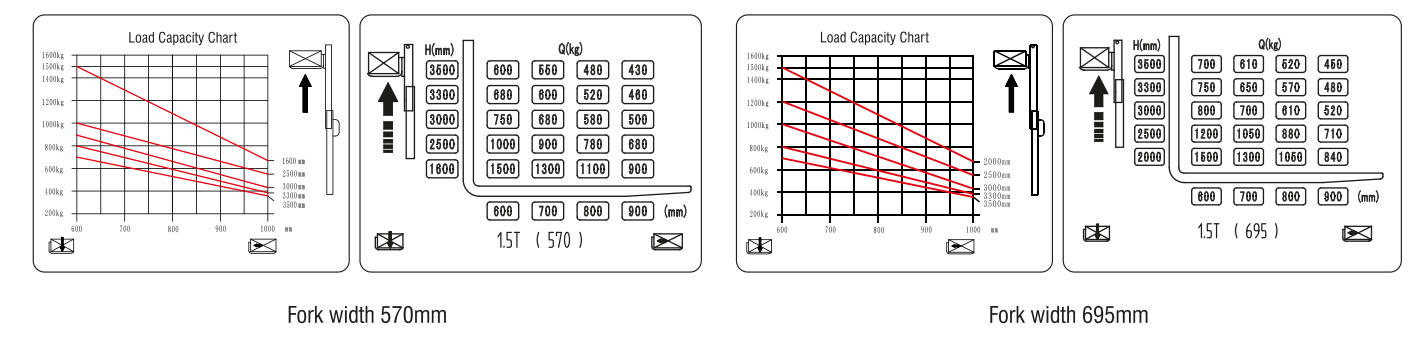

Load capacity

 Q (kg)

1500

1500

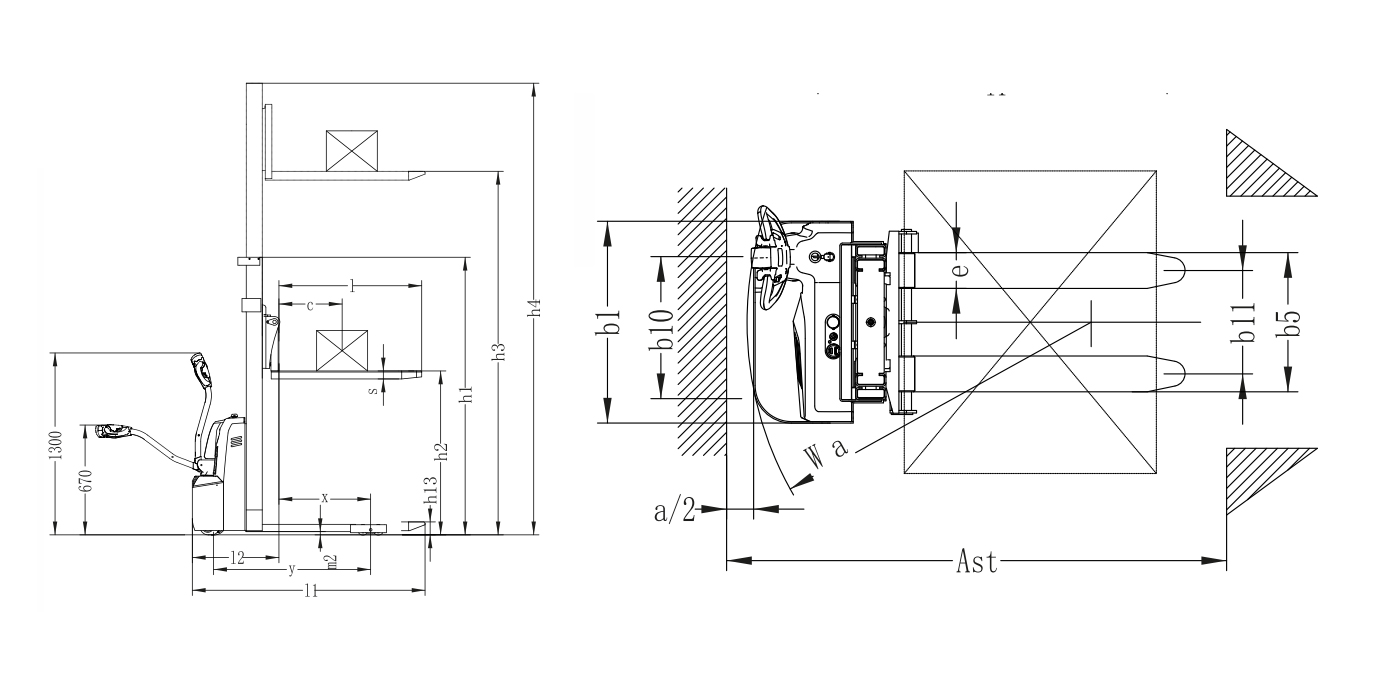

Load centre distance

 c  (mm)

600

600

Load distance, centre of drive axle to fork

 x(mm)

690

690

Wheelbase

 y(mm)

1180

1180

Service weight

 kg

460/520/540/550/560

415/480/500/515/520

Axle loading, laden front/rear

 kg

555/1495

510/1490

Axle loading, unladen front/rear

 kg

405/145

380/120

Tyres: solid rubber, superelastic, pneumatic, polyurethane

PU

PU

Tyre size, front

φ195x70

φ210x70

Tyre size, rear

φ80x93

φ80x70

Additional wheels (dimensions)

φ150x50

φ150x50

Wheels, number front/rear(×=driven wheels)

1x+1/2

1x+1/4

Tread, front

 b10(mm)

523

523

Tread, rear

 b11  (mm)

410/525

410/525

Height, mast lowered

 h1 (mm)

2090/1840/2090/2200/2340

2090/1840/2090/2200/2340

Free lift

 h2 (mm)

N/A

N/A

Max.Lift height

 h3(mm)

1600/2500/3000/3300/3500

1600/2500/3000/3300/3500

Height, mast extended

 h4(mm)

2090/3060/3560/3860/4060

2090/3060/3560/3860/4060

Height of tiller in drive position min./max.

 h14(mm)

670/1300

670/1300

Lowered fork height

 h13(mm)

90

90

Overall length

 l1(mm)

1800/1720

1800（1720）

Length to face of forks

 l2(mm)

650

650

Overall width

 b1/b2(mm)

800

800

Fork dimension

 s/e/l  (mm)

60x142x1150(1070)

60x160x1150(1070)

Width overall forks

 b5(mm)

300--570(695)

570/695

Ground clearance, centre of wheelbase

 m2(mm)

26

26

Aisle width for pallets 1000×1200 crossways

 Ast  (mm)

2245

2218

Aisle width for pallets 800×1200 lengthways

 Ast  (mm)

2220

2173

Turning radius

 Wa(mm)

1365

1365

Travel speed,laden/unladen

 km/h

4.5/5

4.2/4.5

Lift speed,laden/unladen

 m/s

0.09/0.15

0.09/0.15

Lowering speed,laden/unladen

 m/s

0.15/0.11

0.15/0.11

Gradeability,laden/unladen

 %

6/15

6/15

Service brake

Electromagnetic

Electromagnetic

Drive motor rating S260 min

 kW

0.65

0.75

Lift motor rating at S315%

 kW

2.2

2.2

Battery voltage/nominal capacity K5

 (V)/(Ah)or kWh

24/105

24/85

Battery weight

 kg

52

46

Sound pressure level at the driver's seat

 dB(A)

70

70
